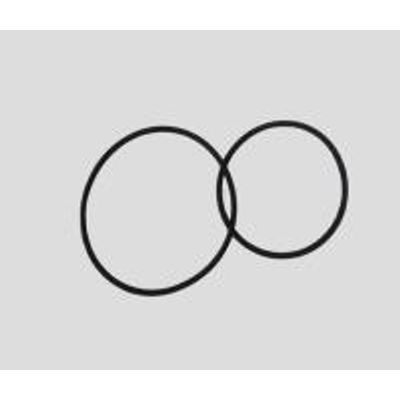

Cimaka - Rubber Cord O-Rings
When you need an O-Ring and cannot find a stock part, we bring you another option. The Cord Ring, when moulded tolerances are not necessary or the lead time is too long, we can offer you a Cord Ring. Avaiable in several cross sections, from 1.78 thru 25.0 mm and inside diameters from 60.0 mm thru your needs.
Most popular related searches
Tolerances for Cross section/DIN 7715 Teil3 E2
(Cord Dia.)/Tolerance
- up to 2.50 mm: ± 0.35 mm
- 2.50- 4.00 mm: ± 0.40 mm
- 4.00- 6.30 mm: ± 0.50 mm
- 6.30-10.00 mm: ± 0.70 mm
- 10.00-16.00 mm: ± 0.80 mm
- 16.00-25.00 mm: ± 1.00 mm
We offer materials like FKM 75 / 90 Shore, FKM 75 FDA compliant, NBR 60, 70, 90, VMQ red FDA compliant, EPDM 70, EPDM FDA+KTW (peroxide cured), Aflas 75.
