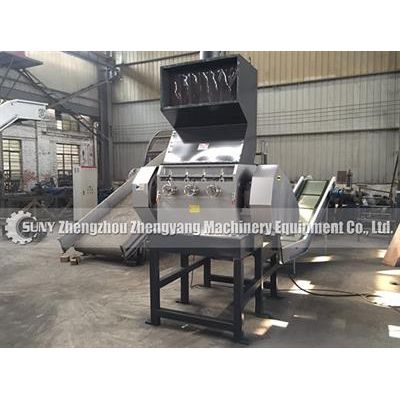

Suny Group - Model HNRG -Rubber Granulator

Rubber granulator is an indispensable equipment for fully automatic tyre recycling line,Rubber granulator is used to crush the rubber from the steel wire separator and the particle size can reach 1mm after crushing. Then they can reach the final size by particle sieving and circulation. Due to the particular design, the granulator can produce uniform and high quality rubber granule and above 99% of fiber is removed during production, so it has high separating efficiency.

The rubber granulator is suitable for crushing thin and fragile material, such as plastic, 5-20mm rubber granule, etc. The radial deflection X-shaped occlusal structure of the moving blade and fixed blade effectively reduces the cutting resistance and improve the cutting performance, so it can increase the output and reduce energy consumption.

For the rubber with different shape and thickness, the rubber granulator adopts specific cutter body structure, high strength solid shaft and cutter frame which makes crushing efficiency and capacity increase obviously.
