Horiaki - Rubber Metal Gaskets
We manufacture BlackRubber Metal Gaskets for the purposes where natural media like Water, Closed Loop Water Arrangements, SolutedLyes at max 50% conc. and mx 80% have to be sealed. All our products including Rubber Gaskets KTW or Rubber Gaskets W270 are standardized and are only manufactured with Natural Rubber (SMR) having hardness of DIN 53505, Shore A to make them resistant to water, seawater, pond water, closed loop water up to 90°C and also against alkalines up to some extend like 50% NaOH at 50oC.
Established in 1998, Horiaki India Pvt. Ltd has been manufacturing highly durable and high on performance Rubber Gaskets for our customers.
For effective functioning at even high temperature range of approx. +80°C and for short-term up to +90°C, Horiaki India Pvt. Ltd. Rubber Metal Gaskets Water Lines, Rubber Metal Gasket DGVW etc. have the density DIN 53479, g/cm3 1.384. We are most prominent as Rubber Metal Gaskets Exporters In India. Based on our own test facilities Horiaki India Pvt. Ltd. manufactured rubber metal gaskets are certified resistant even against natural lighting, weather and ozone. Limited only by the natural properties of vulcanized rubber our rubber metal Gaskets are not resistant against fuel, mineral oils, acids and gases.

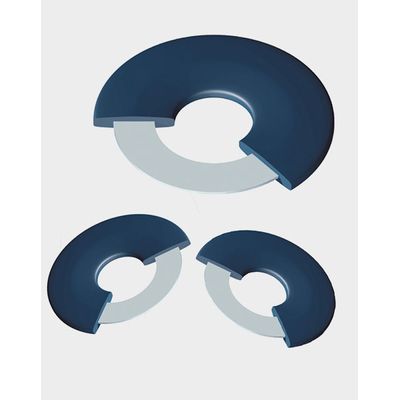

The gaskets are made of elastomere butadien-rubber in different types -with inside vulcanised steel ring.
Sizes at the measurement table:
- d1 = Inner diameter
- d2 = Outer diameter
- s = Thickness
- Vulcanised rubber gasket, cross section in lens form, rounded edges.
- Inside vulcanised steel ring, therefore good reception of the bolt force.
- Outer diameter of the gaskets fits to the inner bolt circuit for self centering.
- Dimension in DIN EN 1514-1(replaces DIN 2690 ) for the pressure ratings PN 6 to PN 40.
- DN 15 up to DN 2000
- Materials: NR=Natural Rubber(SMR),EPDM ,FKM, Silicon
- Application Field: Water, Closed Loop Water Arrangements, Soluted Lyes at max 50% conc. and mx 80%
- Color: Black
- Hardness: DIN 53505, Shore A 60-80 +/-5
- Density: DIN 53479, g/cm3 1.384
- Temperature: Approx. +80°c, Short-term Up to +90°c
- Certificates: Approval of own test facility.
