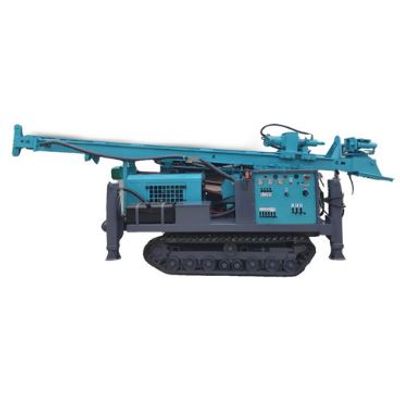

HJi - Model 800 -Rubber Tracks Fully Hydraulic Rope Coring Drilling Rig
HJi Fully Hydraulic Rope Coring Drilling Rig is a reliable, efficient, and powerful drilling equipment that guarantees high-quality results for any core drilling project.
Most popular related searches
core drill rig
core drilling
drilling rig
hydraulic drilling rig
drilling rig core
hydraulic drilling
cooling water
hydraulic rig
water cooling
drilling equipment
- Model: HJi-800 Rubber Tracks Fully Hydraulic Rope Coring Drilling Rig
- Caliber: HTW-NTW-BTW
- Depth: 400-880-1100(M)
- Cooling Method: Air Cooling + Water Cooling
- Engine: Yuchai Turbocharged
- Rated Speed: 2400RPM
- Rated Power: 118KW
- Maximum Torque: 1150-1500(N.M)
- Maximum Speed: 1500RPM
- Feeding Stroke: 2400MM
- Drilling Angle: 45-90(°)
- Lifting Force: 26T
- Feeding Force: 12T
- Walking Speed: 3.5KM/H
- Single Machine Climbing Angle: 45(°)
- Transport Dimensions: 5500*2100*2000(MM)
- Total Weight: 6.5T
