Ruby - Model Minipump 005 - ¼ Inch -Air Operated Diaphragm Pump

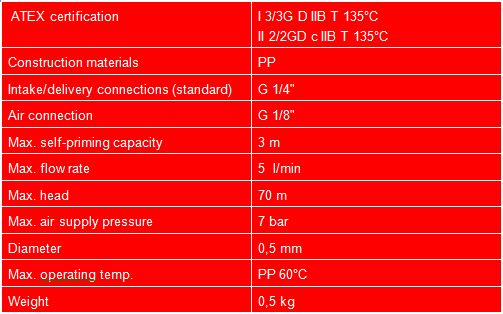

For delivery rates up to 5 l/min. Atex Certification: STANDARD : II 3G Ex h IIB T4 Gc – II 3D Ex h IIIB 135°C Dc. CONDUCT: II 2/2 G/D Ex h IIC T4 Gb/Db  – I M2 Ex h Mb. Construction Material: PP , PP+CF. Intake/delivery connections: G 1/4”. Air connection: 1/8”. Max. flow rate: 5 L/min. Max. flow pressure: 7 bar. Operating pressure: Min. 2 bar – Max. 7 bar. Max. suction head: 3 m. Max. size of solids: 0,5 mm. Max. operating Temperature: 60°C. Weight: 0,5 Kg.
