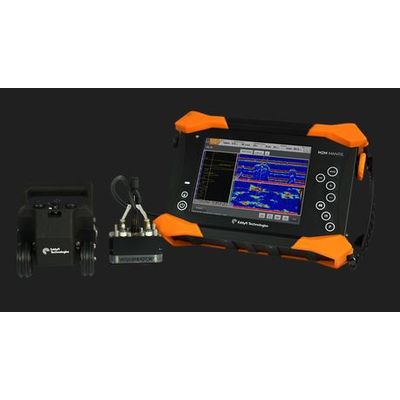

Mantis - Model M2M -Rugged and Lightweight Paut Flaw Detector with TFM
M2M Mantis is a robust and lightweight flaw detector offering UT, PAUT, TOFD, and TFM through the streamlined user interface called Capture. Based on a 16:64PR architecture with three different models, Mantis addresses both general and advanced applications without compromising productivity.
Most popular related searches
flaw detection
ultrasonic inspection instrument
ultrasonic inspection
inspection instrument
screening system
water storage
dust storage
Made for the Field
- Portable, reinforced robust casing designed for IP65
- Compact and light for easy operation
- Resistive touch screen technology (glove compatible, not dust/water sensitive)
- High storage capacity – 128GB SSD
- IPEX PA, LEMO-00 UT and LEMO-16 encoder connectors
- Embedded Easy Latch adaptor available
- One internal battery + one hot-swappable battery
- Connectivity with WI-FI, USB 3 and Gbit Ethernet
- 16:64PR architecture plus two UT channels verified with international standards
- Compatible with existing phased array probes (linear, dual linear, and dual matrix array) and existing scanners (up to three encoder axis)
- Embedded focal law calculation (sectorial, linear, compound) on all parts through
- software
- Up to eight group configurations
- High inspection speeds thanks to PRF up to 20 kHz
- Real-time
- embedded, with advanced analysis tools (auto-sizing, 3D data display, stitching)
- Connectivity for remote support or remote inspection (Wi-Fi™, USB 3.0 and Gigabit Ethernet)
- Ideal for quick set-up, inspection, analysis, and reporting, covering your complete inspection task
- RMS Control ready (motorized scanner)PC versions available for set-up design and analysis
- File compatibility with
- Dimensions (W × H × D) 311 × 220 × 86 mm (12.2 × 8.7 × 3.4 in)
- Weight (with battery) 3.7 kg (8 lb)
- Operating time 4h (hot-swappable battery)
- Display 8.4‘’ high contrast resistive screen
- Resolution 1024 × 768 px
- Storage 128 GB SSD
- IP Rating IP65
- Operating temp range with battery -10°C - 45°C (14°F - 113°F)
- Storage temp range with battery -10°C - 60°C (14°F - 140°F)
- Shock resistance According to MIL-STD-810G 1
