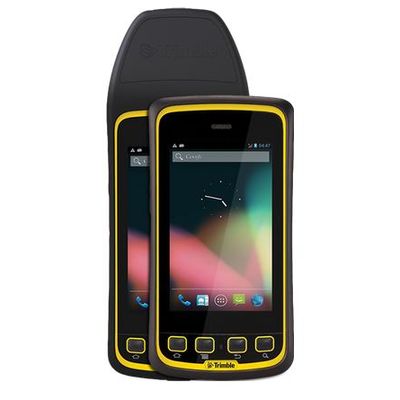

Trimble Juno - Model T41 -Rugged Handheld Computer Mobile Devices
The Trimble Juno T41 rugged handheld computer is a powerful, connected and compact solution for your entire mobile workforce
The Juno T41 handheld has voice, SMS text and 3.75G cellular data transfer capabilities on GSM cellular networks worldwide. You can upload and download data from the cloud using Wi-Fi or WWAN connections. The 8 megapixel camera can automatically include time and location data from the GPS receiver. The Juno T41 handheld includes a capable 1 GHz processor with 512 MB RAM to run software applications fast and reliably.
The Juno T41 is a rugged, all-in-one device that reduces total cost of ownership compared to durable or consumer-grade smartphones. Mobile workforce solutions based on a single device can be more efficient than requiring workers to repeatedly handle at least two: a rugged handheld computer and a cellular phone. Return on investment is also enhanced through increased efficiency from your work force: user applications can transfer data to and from the cloud, while they maintain voice communication with managers who can make faster, better decisions based on real-time information.
Rugged Smartphone Design
Work all day, inside and out, while staying connected with voice and data
Enhanced GPS Positioning
Navigate and collect data accurately in any environment
1D/2D Barcode Scanning
Quickly record asset data by scanning a wide range of codes
Android and Windows OS
Run the software you need on your choice of operating system
- 1D/2D Barcode Imager
- White light illumination and red LED-based aimer for ease of use
- High-motion tolerance to deliver quick imaging responsiveness
- Omni-directional reading capabilities for real world use conditions
- Rapid Scanning Capability for high read rates no matter what the bar code angle or orientation is in relation to the unit
- 1D supported symbologies:
- EAN/UPC, GS1 Databar (limited expanded & omni-directional), Code 39, Code 128, UCC/EAN 128, ISBN, ISBT, Interleaved/ Matrix/Industrial and Standard 2 of 5, Codabar, Code 93/93i, Code 11, MSI, Plessey, Telepen, postal codes (Australian Post, BPO, Canada Post, Dutch Post, Japan Post, PostNet, Sweden Post)
- 2D supported symbologies:
- Data Matrix, PDF417, Micro PDF 417, Codablock, Maxicode, QR, Aztec
Real-Time Enhanced GPS
- 1-2 meter Real-time accuracy with no post-processing or subscription fees required
- Supports GPS L1 band
- Raw Data Output available for post-processing applications
- Average cold start < 33 seconds; Average Warm Start < 3 seconds
- Reliable performance in reduced signal environments
- Processor: 800 MHz or 1 GHz, Texas Instruments DM3730
- RAM: 512 MB
- Flash Storage: 8, 16 or 32 GB
- 4.3” WVGA sunlight-readable Corning® Gorilla® Glass display
- Integrated 3.75G cellular data, text and voice capability
- 8 megapixel camera with geo-tagging and dual LED flash
- Bluetooth® 2.1 with Enhanced Data Rate
- Wi-Fi (802.11 b/g/n)
- 2-year Standard Warranty
Operating Systems
- Windows Embedded Handheld 6.5
- Android 4.1 “Jelly Bean”
- Environmental Specifications
Meets or Exceeds:
- Water: Survives immersion at 6.6 ft (2m) for 1 hour (gray models), IEC-60529 IP-X8
- Survives driving rain and water spray (yellow models), IEC-60529 IP-X5, water jet 12.5mm dia @ 2.5-3m
- Dust: Protected against dust, IEC-60529 IP-6X, dust chamber with under-pressure
- Drops: Survived multiple drops of 4 ft. (1.22m), MIL-STD-810G, Method 516.6, Procedure IV, Transit Drop
- Operating Temperature: -22 ºF to 144 ºF (-30 C to 60 C), MIL-STD-810G, Method 502.5, Procedure I, II, III (Low Temp Operating -30 C); Method 501.5, Procedure I & II (High Temp Operating 60 C)
- Storage Temperature: -40 ºF to 158 ºF (-40 C to 70 C), MIL-STD-810G, Method 502.5, Procedure I, II, III (Low Temp Storage -40 C); Method 501.5, Procedure I & II (High Temp Storage 70 C)
- Temperature Shock: Cycles between -22 ºF and 144 ºF (-30 C and 60 C), MIL-STD-810G, Method 503.5, Procedure I-C
- Humidity: 90% relative humidity with temperatures between 22 ºF and 144 ºF (30 C and 60 C), MIL-STD- 810G, Method 507.5, Procedure II
- Altitude: 15,000 ft (4,572 m) at 73 °F (23 C) to 40,000 ft (12,192 m) at -22 °F (-30 C), MIL-STD-810G, Method 500.5, Procedure I, II & III
- Vibration: General minimum integrity and loose cargo tests, MIL-STD- 810G, Method 514.6, Procedure I & II, Category 5
- Solar Exposure: Survives prolonged UVB exposure, MIL-STD- 810G, Method 505.5, Procedure II
- Chemical Exposure: Resistant to mild alkaline and acid cleaning solutions, fuel hydrocarbons, alcohols and common vehicle and factory machine lubricants
