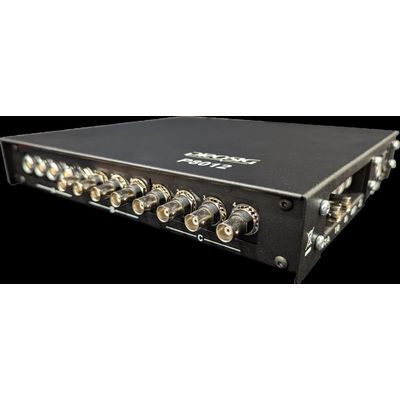

Prosig - Model DATS-P8012 -Rugged, Portable Data Acquisition System
The DATS-P8012 is a rugged, portable data acquisition system that supports up to 24 high speed analog inputs. Sensor options are the same as the DATS-tetrad system. The unit can be powered from mains, vehicle or its internal battery power. The P8012 provides the same measurement capabilities as the DATS-tetrad and Hyper12 systems without some of the advanced features such as batteries and internal storage. This makes it an ideal entry level system or channel extender for Tetrads or Hyper12 systems.
Rapid re-configuring for different tests and applications allows the system to be easily changed from one test to the next.
The DATS software integrates with all of the hardware options and blends ease of use for beginners with power for experienced users
Fast verification of measurement channels between each test. Prosig`s setup editor is simple and easy to use.
Prosig`s hardware and software is built around decades of real-world experience of measurement challenges.
Flexible channel options per system and stackable, interconnected systems up to more than 1000 channels.
Systems can be configured to capture at rates up to 800,000 samples / sec / channel (16 bits) or 300,000 samples / sec / channel (24 bits)
Even when systems are connected for high channel counts, Prosync means that every sample on every channel is accurately synchronised.
Works with mains or vehicle power. Internal battery ensures measurement & data security event in the event of a power supply failure.
A simple USB connection to a PC or laptop ensures data is streamed continuously to host for storage and realtime display.
The P8012 can be connected with other units or a Tetrad/Hyper12 and the measurement cards can be re-used to upgrade.
