Suntex Co.,Ltd.

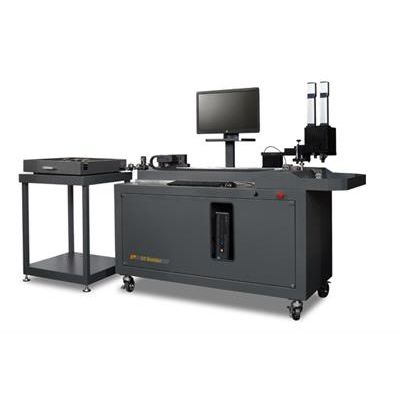

Suntex - Model ST -Rule Processors Bender
FromSuntex Co.,Ltd.
L:750mm W:2700mm H:1600mm Weight:350kg. *weight and size include adjusting roller, coil case and coil case stand.
23.6mm-32mm
RBS
- • 23.6/23.8mm×0.71mm(2pt)
- • 23.6/23.8mm×0.45mm(1.5pt)
- • 23.6/23.8mm×0.9mm
RBS Option
- Function
- • Nicking
- Sub function
- • Peforating
- • Cut and crease
- Function
- • Side cutter(Broaching)
35mm-60mm
SP
- • 30mm-60×1.05mm(3pt)
- • 30mm-50×1.4mm(4pt)
SPB
- • SP function+Briding tools
- • Extra type z 60mm-100×1.05mm(3pt)
- • Extra type w 2mm
6mm-12mm
LBS
- • 6-12mm×0.45mm(2pt)
Please tell us your cutting rule size. we will recommend suitable machine type and options. We highly recommned to select one type of machine by one kind of cutting rule if you need highly precision bending. Multi kind of cutting rule using sometimes might be difficult to control bending quality.
