38 Gallons/144 Liters/Hour – High Efficiency
Our Run Dry Wastewater Evaporator technology allows the unit to be run dry, without damaging the evaporator, to reduce the waste stream to a fraction of the original volume.

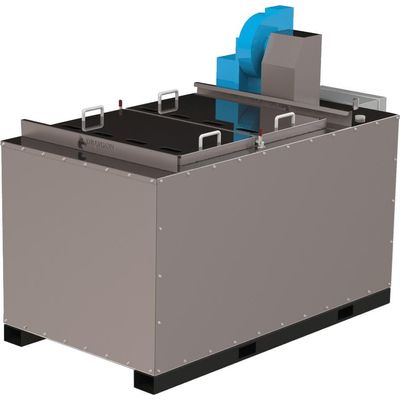

With a maximum tank capacity of 225 Gallons/850 Liters, the DRG 40 wastewater evaporator offers highly efficient waste water disposal with automatic operation.
All DRG wastewater evaporators have as standard CRA (Chloride Resistant Alloy) evaporation chamber wettable surfaces.
Draygon wastewater evaporator technology is used for a wide range of waste water disposal needs, including parts washing, metal fabrication, printing shops, ceramic wastes and vehicle and building washing applications.
The DRG 40 evaporates up to 38 gallons/144 liters per hour and is fueled by a natural gas or LPG burner.
Like the smaller DRG 2 and DRG 7 evaporators, the DRG 40 is a “Run Dry” unit that can be run until dry without damaging the evaporator and completely evaporates the wastewater to reduce the waste stream to a fraction of the original volume.
Options for Draygon Wastewater Evaporators include:
Clean out trays, spreader bars, advancing media filters, condensers for water recovery and custom accessories.
Operating Type
- Automatic
Evaporation Rate
- 38 Gallons/Hr.
- The evaporation rates are estimates based air at 70°F for automatic operation, water at boiling point for one hour in batch operation (solids or floating oil build-up in evaporation chamber will reduce rate).
Dimensions (L/W/H)
- 100 x 48 x 52″/254 x 122 x 132cm (excluding stack)
Maximum Tank Capacity
- 225 Gallons/850 Liters
Heating Fluid
- 150 Gallons/568 Liters
Burner Fuels
- Natural Gas or LPG
Electrical Requirement (For Controls)
- 220V, 30 AMP, Single Phase
Fuel Consumption (Natural Gas)/Hour
- 400,000 Btu/4 Therms/460 Cu Ft/13 Cu Meter
Weight-Including Heat Transfer Fluid
- 1900lbs/864kg
- Fast Payback/ROI
- Run Dry-Run Dry Without Damage
- Up To 99% Waste Stream Reduction
- Fast Installation
- Easy Operation And Cleaning
- Exhaust Draft Induction Fan
- Insulated Double Boiler Design With Heat Transfer Fluid For High Efficiency, Exceptional Thermal Transfer
- Multiple Safety Features
- Wettable Surfaces CRA
- No NPDES Discharge Permits Needed (always check with local agencies before purchasing)
- 5-Year Limited Warranty
- Parts Washing
- Printing Inks/Dyes
- Vehicle Washes
- Photo Processing
- Metal Fabrication
- Metal Finishing/Plating
- Floor Scrubbing Water
- Marina Bilge Water
- Air Condensation
- Ceramic Coating Wastes
- Compressor Condensate
- Degreasing Operations
- Screw Machine Shops
- Truck/ Car Washes
- Coolants
- Most Aqueous Waste Streams
