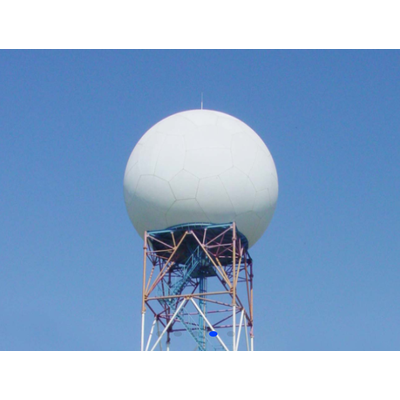

Metstar - S-Band Doppler Weather Radar
High power and high gain klystron transmitter. Large dynamic high sensitivity receiver. High speed servo system. Independent intellectual property rights of highly integrated digital IF and signal processing system. Multiple observation operation modes. Multi-band radar cooperative observation ability. Intelligent adaptive observation ability. Remote control function.
Most popular related searches
- Technical Data: S-Band
- Detection Range (km): ≥460
- Range Resolution (m): ≤62.5
- Azimuth/ Elevation Angle resolution (°): ≤0.01
- Intensity Resolution (dBZ): ≤0.5
- Width Resolution of Velocity Spectrum (m/s): ≤0.5
- Intensity Calibration Error (dB): -1.0～1.0
- System Phase Noise ((°): ≤0.06
- Clutter Suppression (dB): ≥60.0
- Antenna Azimuth Maximum Scanning Speed (°/s): ≥60
- Average Output Peak Power (Kw): ≥650
- Receiver Linear Dynamic Range of (dB): ≥115
- Receiver Noise Figure (dB): ≤3.0
