S:FLEX - Model Foil/Bitumen -Flat Direct for Pitched-Roof Installation
The advantages of the S:FLEX Flat Direct at a glance: Installation without roof penetration. Aerodynamic system with low ballast. Optimised wind suction openings for reduced ballast. Problem-free water drainage and optimal module back-ventilation. Also suitable for roof-edge zones. We will gladly create the structural design for our customer`s projects if required – the documentation we provide includes the structural analysis and the ballast plan.
Floor rails
The floor rails feature foam pads on the underside, ensure stable support of the system on the roof and guarantee unimpeded water drainage.
Floor rail connectors
For fast and permanent connection of the floor rails in the area of the module arrays. The fully recessed grub screws allow the installation of ballast in the area near the connectors.
Ridge connectors
For quick and permanent connection of floor rails over the ridge, e.g. to connect module arrays on both sides of the roof.
Cross adapters
Cross adapters with patented one-click technology enable fast and permanent connection of the floor rail and module carrier rail.
Mounting rails/module carrier rails
For end and centre attachment, S:FLEX systems rely on particularly lightweight, structurally optimised hollow chamber rails in various profiles and lengths that feature our proven one-click technology.
Rail connectors
To ensure structurally identical properties in the area of the rails and the connections.
End and mid clamps
S:FLEX module clamps have an extremely wide clamping area and are therefore suitable for all standard modules and frame heights of 30-50 mm. High torsion resistance and our latest, ultra-smooth one-click technology make installation a snap.
The low-ballast and non-penetrative system for a wide variety of roof shapes

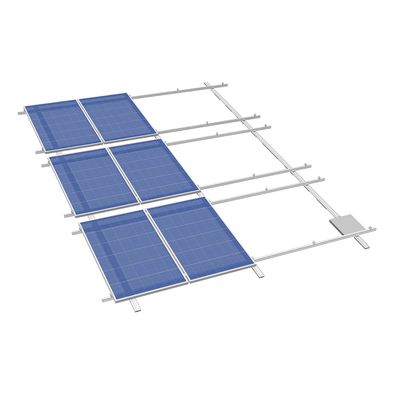

The Flat Direct from S:FLEX is an innovative PV mounting solution for roofs with foil or bitumen roofing as well as sandwich roofs. This aerodynamic system is thus particularly suitable for industrial roofs with low load-bearing capacities.
The S:FLEX Flat Direct can be used on a variety of roof shapes with a maximum pitch of 30° – saddle, single-pitch or butterfly roofs, one-sided or double-sided, with framed modules installed vertically or horizontally.
Pre-glued foam pads with a high coefficient of friction and optimum material compatibility under the aluminium floor rails ensure a secure fit with minimal ballast, while the system design includes wide gaps between the modules to ensure optimal rear ventilation and create a suction effect in the direction of the roof. Depending on the roof shape, special ridge angle connectors, counterweights or mechanical couplings ensure even greater safety when anchoring. Any necessary ballast stones are clamped to the floor rails so that they cannot slip.
Like all S:FLEX mounting systems, the Flat Direct also allows quick installation thanks to a high degree of pre-assembly and our proven modular system with pre-assembled modular rails, mid and end clamps for all frame heights and our user-friendly clickable technology.
Applications for the S:FLEX Flat Direct
Suitable for saddle roofs, single-pitch roofs, butterfly roofs and flat roofs. For purely ballasted installation or with additional counterweights or roof fastening points.
Application
Pitched roof with foil/bitumen roofing, sandwich roofs; other roofing materials on request
Fastening
Without penetration / ballasted; Roof connection depending on project
Roof pitch
Up to 30 degrees
Module type
Framed modules (frameless on request)
Module size
All common module sizes
Module orientation
Vertical/horizontal
Orientation
Parallel to the roof
Building height
Max. 25 m
Wind load
Up to 2.4 kN/m²
Snow load
Up to 5.4 kN/m²
