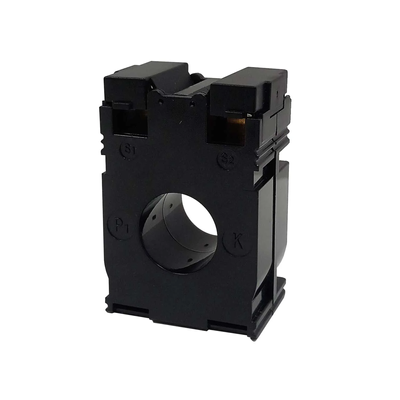

SACI - Model TU20PS-1 -Narrow Profile Current Transformers
Measuring transformer for cable with the possibility of DIN rail mounting. Its narrow profile design allows a better adaptation in the panel due to its reduced dimensions. Plastic casing.
Most popular related searches
- Secondary: x/5A
- Accuracy: 0,5 – 1 – 3
- Plastic casing
- Security factor: Fs < 5
- Rated voltage (maximum): 720 V
- Test voltage: 3 kV AC (1min)
- Frequency: 50 – 60 hz
- Rated short-time thermal current: Ith limited by cable sizes or primary bus-bar
- Rated dynamic current: IDyn = 2,5 x Ith
- Continuous overload: ID = 1,2 x In
- Operating temperature: -5 … 40 ºC
- Accuracy: 0,5; 1 and 3
- Rated secondary current: /5
- Insulation class: Class E // Class B (130 ºC) Available
- IEC 60185
- IEC 61010
- UNE EN 61869-1 (IEC 61869-1)
- UNE EN 61869-2 (IEC 61869-2)
- UNE-EN 61000-6-3
- UNE-EN 61000-6-1
- UL94-V0
- VDE 0414
- DIN 57414
- BS 3938
