SafeLoad - Model InnVision ST -High-Speed Vision System for Analyzing Load Deformation

SHARE

The InnVision ST is a high-speed machine vision system specifically designed to record and analyze the deformation of unit loads under various testing conditions such as tilt, drop, impact, and vibration. This system integrates a high-speed camera and sophisticated software to capture minute details of load deformation, tilting, and rebound during free or rotational falls in a laboratory environment. One of its key benefits includes a significant reduction in analysis time, over 90% faster than standard manual methods. The system's software enables real-time analysis, the creation of detailed reports with photos and videos, thus providing reliable results that are crucial for optimizing load stability and ensuring compliance with testing standards like EUMOS 40509. The InnVision ST is versatile, finding applications across industries such as automotive, aerospace, medical, and consumer goods through its compatibility with various testing solutions.

Most popular related searches
load frame
impact crushing
machine simulation
MPS software
analysis system
laboratory testing

High-speed camera and software measure unit load deformation, tilting angle, and rebound in innVision ST system

The innVision ST system is composed of a high-speed camera and software to measure the unit load deformation, the tilting angle or the rebound produced by a free or rotational fall when tested under laboratory condition.

After completing the test, the system generates a report containing all the information related to the deformation experienced by the unit load, reducing analysis times by over 90% when compared to standard manual procedures.

The system includes:

  • Software
  • 2.3 MP High-speed camera with a precision range of 3mm.
  • Tripod

High speed cameras

We offer companies high-speed cameras to record load deformation second by second. After the analysis of the images, it is possible to see the deformation of the load unit frame by frame and generate a video to visualize the complete test.

High-tech software

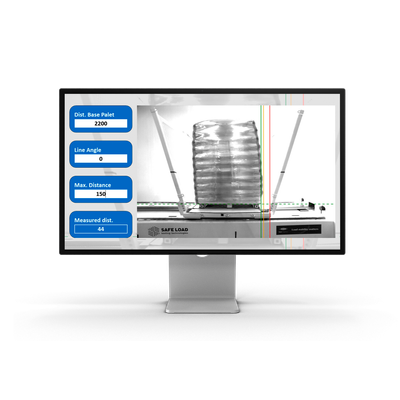

The software of the innVision solutions is capable of analyzing the deformation in real time, generating an automatic report with photos and videos, which show the deformation of the load unit at each moment.

Reliable results

innVision solutions have been created to help companies optimize unit loads. Therefore, they can be used to perform own quality control tests, to measure load stability or to comply with main test procedures or standards, such as EUMOS 40509.

The innVision SET System and the innVision PRO System can be used with different testing solutions, such as:

  • innSlide family: the Horizontal Stability Machines are designed to simulate the horizontal accelerations and decelerations typical of distribution cycles, in order to optimize the packaging to improve its stability and safety, thus avoiding possible damage to the load and/or accidents resulting from it. of bad stowage.
  • innShock family: the Inclined Impact Machine and the Horizontal Impact Machine evaluate the ability of loads to resist horizontal impacts or crushing forces.
  • innDrop: The Drop Machines allow us to know how vertical and rotational impacts can affect the integrity of the packaging and the products. The information obtained by the innDrop family will help design appropriate packaging to protect merchandise during the distribution cycle.
