Duperthal - Model Basic Line Standard ...

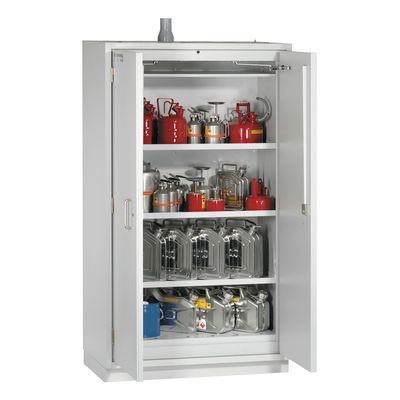

Duperthal - Model Basic Line Standard XL -Safety Cabinets for Storage

FromDuperthal Sicherheitstechnik GmbH & Co. KG

Model size: XL. Interior: 3 Storage shelf 0 1 . Maximum volume of the largest individual container [l]: 46 -(12.15 - gal). Door design: Wing door. Door technology: Classical. Dimensions (W x D x H) [mm]: 1195 x 595 x 2035, (47.05 x 23.43 x 80.12 - inch).

Most popular related searches

safety storage cabinet

flammable safety cabinet

Reference no.: 23-201260-401
Product group: safety storage cabinet
Designation - addition: standard
Use/program section: passive storage
Fire resistance (FR): Type 30
Catalogue page: 182
Doors can be opened with minimum effort, design: wing door
Door technology: classical
In case of fire, automatic and blockage-free self-closing via thermocouple: yes
Outer width [mm]: 1195 - (47.05 inch)
Outer depth [mm]: 595 - (23.43 inch)
Outer height [mm]: 2035 - (80.12 inch)
Base height [mm]: 85
Gross weight [kg]: 278 - (612.88 lbs)
Maximum volume of the largest individual container [l]: 46 - (12.15 gal)
Collection volume [l]: 51 - (13.47 gal)
Number of bottom trays: 1
Number of perforated sheet inserts: 1
Earthing connection according to TRGS 727 conductively connected to interior fittings: 1
Number of earthing connections: 2
Load-bearing capacity per standing surface with uniformly distributed load [kg]: 75 - (165.35 lbs)
Mark of approval by TÜV: GS mark
Type-tested by recognised test institutes according to: DIN EN 14470-1
TÜV-tested according to: DIN EN 14470-1, EK5/AK4 09-10
further test bases: DIN EN 14727
further test bases: TRGS 510 Annex 3
Added value mark of approval by TÜV: High Quality
Declaration of conformity: CE
