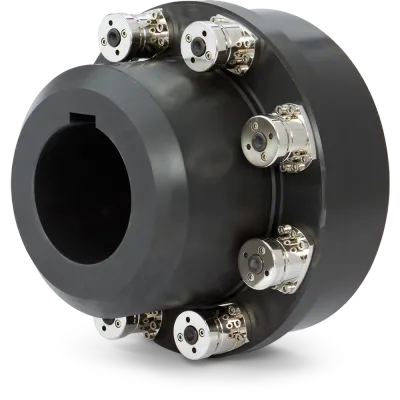

R+W - Model ST1 -Safety Coupling with Keyway
200 – 45,000 Nm | Indirect drives, Features; Compact, simple design. Torsionally rigid. Adjustable. Robust, precise overload protection.
Most popular related searches
- Temperature range
- -30 °C to +120 °C (-22 °F to +248 °F)
- Design
- Drive side:
- Coupling hub with keyway connection (spline profile on request )
- Driven side:
- Output flange with fastening threads
- Integral bearings
- Safety elements:
- evenly spaced around the circumference
- field adjustable within the selected range
- Drive side:
-
- Material
- Hardened steel (nitrocarburized surface)
- Material
- Fit clearance
- Overall shaft / hub clearance of 0,02 – 0,07 mm
- Special solutions
- Automatic re-engagement
- ATEX (Optional)
- For use in hazardous areas available upon request
