Berluto Armaturen-Gesellschaft mbH

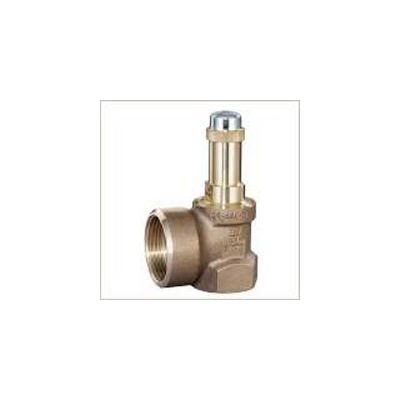

BerlutoModel MSV-HN -Safety Valve for Heating Installations

SHARE

Diaphragm safety valve, connection size 1/2" to 2". For closed heating systems. Acc. DIN 4751 part 2. Body of red bronze. Inlet female threaded type G ISO 228-1. Set pressure 2,5 and 3,0 bar. Max. temperature up to +120°C. TÜV-approved, CE-tested.

Most popular related searches

Diaphragm safety valve with extra large outlet, saveguarding thermostatically protected closed-circuit water heating systems with flow temperatures of up to 120°C and an admissable heating power of up to 2700 kW.
