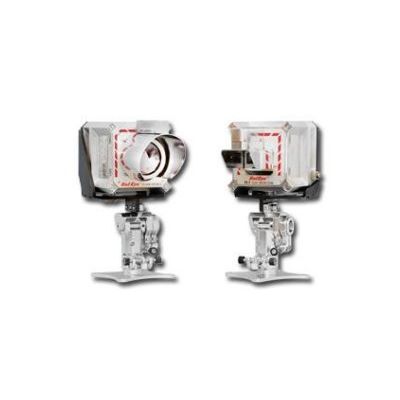

SafEye - Model 200 Series -Open Path Combustible Gas Detector

• Robust Performance Under Extreme Conditions
• Rapid Response to the Presence of Gas
• Low Maintenance & Easy to Install
• Wide Range of Detectable Gases
• Large Installed Base
• Proven & Reliable Technology
• 18-Month Warranty

Proven Technology
Used in highly sensitive areas to detect low gas concentration levels to activate alarms when specific hazardous concentration levels are exceeded.

Thousands of Spectrex Series 200 open path gas detection units are installed on offshore platforms, FPSO’s, refineries, chemical manufacturers and other applications operated by leading global oil and chemical companies.

Cost Effective
A single system can monitor line-of-sight up to 460 ft. (140 m). The low cost of ownership, low installation costs, and minimal maintenance requirements further contribute to cost savings.

Robust Design
Specifically engineered to perform in harsh installations such as high-velocity airflows, humidity, and corrosive gases.

Fast Response
Adjustable light source flash rate gives high sensitivity and fast detection time. Also prevents detector from going into obscuration when a large cloud of gas passes through the beam.

Low Maintenance
High reliability, simple installation, easy alignment, and minimal maintenance.

The Spectrex SafEye 200 Series has a large proven installed base worldwide. It offers an economical solution for those wanting to incorporate open-path gas detection technology into their safety system. The high immunity to false alarms and rugged design means improved accuracy and reliability.

The SafEye 200 Open Path Gas Detector is a self-contained, fast response optical gas detection system that detects combustible gases at concentrations below the lower explosion limit (LEL) over a “Line of Sight” of up to 460 feet. (140 m).
The SafEye is the preferred system for offshore oil companies because it is immune to false alarms caused by partial path blockage and extreme weather conditions such as fog, rain, and snow and direct or reflected sunlight, flame, and other black body radiation sources. With up to 90% of the signal obscuration, SafEye will continue to reliably monitor for the presence of gas.

The SafEye is built for reliability and continued operation under all types of extreme environmental conditions. Current SafEye operational installations range from the very humid and hot Far East to the wet and cold North Sea to the dry and cold slopes of Alaska.

The SafEye, due to its superior optics design, provides for a misalignment tolerance of ±1° in all directions and is protected against false gas reading and alarms. The SafEye unique flash source gives a very powerful radiation signal for a very short time, less than one millisecond at pre-selected intervals. This patented feature enables the detector to address only the high intensity and ultra fast signals that correspond to fast changes in gas concentration, while ignoring all other background radiation.
