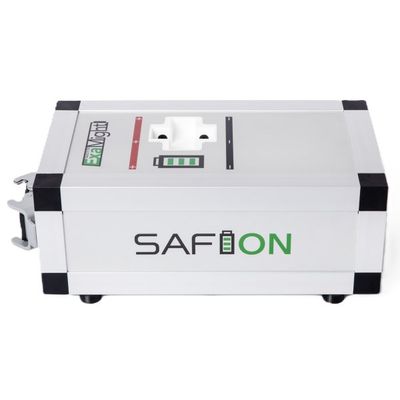

Safion ExaMight.Contact - Rapideis Technology
The contact unit called ExaMight.Contact ensures clean electrical contact with the battery and, depending on the model, is equipped with a temperature measurement. The contact system is available for all possible cell geometries. With Examight.Desktop you can measure the quality assurance of your batteries using EIS technology.
Desktop Contact 18/21 guarantees reproducible 4-point contacting of the test object. All ExaMight.Desktop contact units are characterized by plug-and-plug integration into the ExaMight ecosystem.
The system automatically performs the contacting as soon as the battery under test is inserted. This eliminates the influence of the contacting on the measurement result.
The contact unit is connected to the measuring unit via a Harting connector. There are contact units for all cell geometries and sizes for round, pouch or prismatic cells.
The contact unit called ExaMight.Desktop Contact ensures clean electrical contact with the battery and, depending on the version, is equipped with a temperature measurement.
- Fully/semi-automatic electrochemical impedance spectroscopy for determining battery impedance (EIS)
- Multi-EIS technology enables the superimposed measurement of 32 impedance points in 1 second (RapidEIS)
- Automatic quality assessment based on customizable criteria
- Fully scalable from low to high throughput
- Applicable to all lithium-ion, sodium-ion (intercalation technologies) and lithium-sulfur batteries
- Time saving through fully automatic rapidEIS measurement of 32 frequency points in 1 second
- Measurement of 1kHz resistance, open circuit voltage and cell temperature
- Maximum data security through local storage and stand-alone operation
- Always receive the latest software updates and remote support via the Internet
- Benefit from 4 x USB, DisplayPort, 2 x Ethernet interfaces
