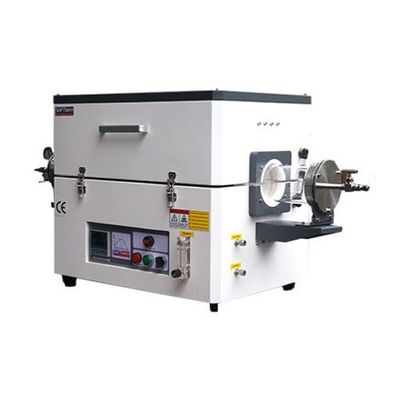

SAFTherm - Model STG-100-12 -1200C Single zone Split Tube Furnace

1. The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and resistant to corrosion.
2. The solid double-layer metal frame is combined with the heat-insulating fan structure, and the furnace surface temperature is low
3. Horizontal use mode, upper opening structure, easy to operate

Multi-layer insulation design, composed of lightweight alumina ceramic fiber and high-quality insulation board backing, does not contain asbestos components, low heat loss and low energy consumption

1. High-quality HRE spiral resistance wire heating element is safely and firmly embedded on the surface of the furnace, and is heated by free heat radiation in the furnace cavity, which is energy-saving and efficient, and has a long service life
2. Ring heating by resistance wire to achieve good uniformity in the furnace

1. PID and SSR control mode, precise temperature control
2. Internationally standardized N-type nickel-chromium-silicon thermocouple with a temperature measurement range of 0-1300? and a long service life
3. The furnace door is equipped with a door-opening power-off safety protection switch

Program Controller

1. Advanced controllers that meet complex process requirements
2. Simple and direct operation, flexible programming
3. Programmable 30 program segments for a single curve
4. Over temperature and fault alarm, automatic safety protection

1.With 304 stainless steel sealing flange to obtain vacuum or atmosphere in the furnace tube

1. High-quality quartz glass working tube, and metal or corundum working tube can also be selected to adapt to different working conditions
