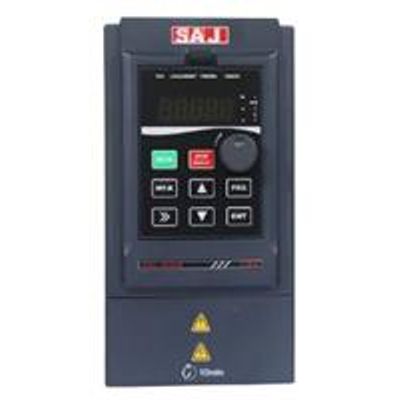

SAJ - Model PDS33 -Solar Pump Controller
PDS33 Solar Pump Controller adopts a new hardware technology platform and uses the MPPT algorithm to maximize the conversion efficiency of the equipment. The output AC can be applied to various constant water pumps; DC and AC input are supported. When there is no solar energy, the controller can be switched to a single-phase or three-phase AC input such as a generator or mains power. The PDS33 solar pump controller provides a remote monitoring solution that can remotely monitor various operating data and operational fault information of the equipment.
Most popular related searches
solar pump control
solar pump controller
solar pumping controller
solar pump
pump controller
three phase asynchronous motor
solar water pump system
solar water pumping system
remote monitoring
solar water pumping
- flexible
- is compatible with IEC standard three-phase asynchronous motor
- compatible with mainstream photovoltaic modules
- to switch to the mains tasks
- smart
- adaptive maximum power point tracking technology, the efficiency is as high as 99%
- automatic adjustment of water
- adaptive motor power
- cost-effective
- out-of-the-box system design
- built-in motor pump protection
- no battery design, suitable for all kinds of applications
- easy to maintain
- reliable
- advanced motor and pump drive technology, 10 years experience in application market
- soft start function to prevent water hammer effect, extend the life of the system
- built-in intelligent IGBT module, simplify system design and improve the system reliability
- built-in turn over voltage, overload, overheating and dry protection
- remote monitoring
- standard RS - 485 interface
- selected GPRS module is used for remote monitoring
- anytime, anywhere monitoring solar water pump system
- Pv array input:
- Maximum input voltage（Voc）[V]: 450V DC / 800V DC
- Recommend MPPT voltage range(Vmp): 280~360V DC / 500V DC~700V DC
- Recommended pv array power range[kW]: 2.7~3.5 / 2.7~3.5 / 4.5~6.4 / 6.6~8.8 / 9~12 / 13.2~17.6 / 18~24 / 22.2~29.6
- 备用交流发电机:
- Maximum current(RMS)[A]: 23 / 5.8 / 10.5 / 14.6 / 20.5 / 26 / 35 / 38.5
