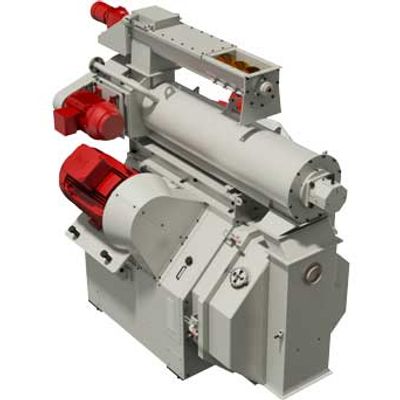

Salmatec - Model Maxima -Pelleting Presses System
SALMATEC pelleting presses from the Maxima series have a modular design and can be adapted perfectly to the most diverse requirements. The different operating conditions that a pelleting press is subjected to during production of pellets make high demands on construction and production. That’s why SALMATEC pelleting presses are made exclusively of high-quality materials and of course comply with the latest safety standards and guidelines. The capacity per hour may amount to up to 50t depending on the type of machine and area of application.
Double pelleting in the smallest of spaces.
Maxima-Duplex is composed of two Maxima pelleting presses and ensures the highest pellet quality while simultaneously enhancing performance and ensuring greater flexibility.
And the special thing about it: Both Maxima pelleting presses also work individually or can be adapted to one another. The method of operation can be adjusted simply by using the pneumatically adjustable flap control device.
All Maxima pelleting presses have a vertically operating ring die in which two or three rollers depending on the product being processed ensure the highest pressure. The Maxima pelleting presses have a low-noise and one-step operated v-belt drive which provides energy-efficient and equal power transmission.
The heart of our pelleting press, the generously sized spherical roller bearing of the rotor, provides the machine with sufficient reserves even under relatively high stress.
The access door can be swung open across the entire pressing room and offers the best possible access to the pressing tools.
All Maxima pelleting presses have comprehensive standard and safety equipment. This includes the overload flap, permanent magnets, shear pins and overload clutches, temperature control, safety switches and much more.
- Feedstuff
- Wood chips and dust
- Renewable raw materials
- Pelleting films/waste
- Textile materials/carpet remnants
- Waste in the steel industry
- Paper and rejected materials
- Filter dust
- Sludge
- Natural and artificial fertiliser
- Feedstuff
- and much more
- Optionally double or triple roller system
- Automatic roller gap adjustment
- Noise protection insulation
- Electric door heating
- Heat protection insulation
- Quick die changing system
- Roller temperature control
- Roller cooling
- Multi knife
- Automatic central lubrication unit forced feeder
- Die and roller hoist frame hydraulically actuated
- Triple axle vibration measurement system
- Special designs for processing extremely lightweight bulk material
- Maintenance drive
- Pneumatically adjustable pellet knife
- Paintwork in your favourite colour
