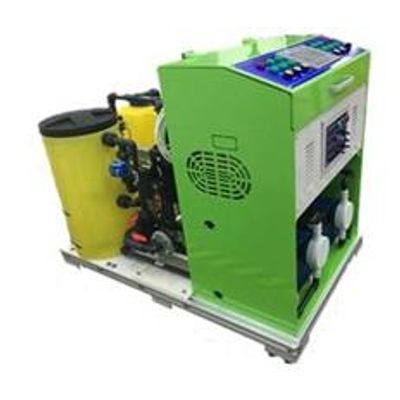

Hada - Model HDTS-100g-NaClO -Salt Water Chlorinator Swimming Pool Salt Chlorine Generator
Sodium hypochlorite is widely applied in water treatment, it kills bacteria and virus in the water,and also use as a bleach to disinfect surface with low concentration. The machine equipped with PLC system,Siemens touch screen with smart interface ,and it is easy to operate . With 11 years experience of researching & developing, we have connected with many Local governmental water treatment plants , and earned lots of reputation from domestics and overseas customers.
- Material:salt,water,power
- Salt consumption: 3.5kg / 1kg Cl2
- Capacity: 100g /hr active chlorine
- Power consumption: 4 kw/ 1kg Cl2
- Water treatment capacity:500 ton / day (2ppm dosing rate)
- Warranty:1 year for whole machine, 5 years for the electrolyzer
Chemical equation
NaCl+H2O = NaClO+H2↑
(Sodium hypochlorite)
NaClO + H2O = HClO + NaOH
(Decomposition into hypochlorous acid )
HClO → HCl + [O]
(The new ecological oxygen precipitation )
The 3 weapons to kill virus:
- The oxydation of HCl (Hypochlorous acid): break the balance of glucose metabolism;
- O (new oxygen): Its strong oxidability will consume the protein of virus, make them lack of energy;
- The Chloridion: disturb the metabolism of gen;
Main technical indicators (Only suitable for HADA`s machine)
- Salt water concentration: 2.5%~3%
- Power consumption: < 4KW/Kg.Cl2
- Salt consumption:<3.5Kg/Kg.Cl2 (If sea water, no need salt)
- Effective chlorine concentration : 5000-8000ppm
- (1000~2000ppm for seawater system)
- Working mode: Fully automatic
- Anode coating life : >5 years
- Cathode life : >20 years
- Machine life: >15 years
