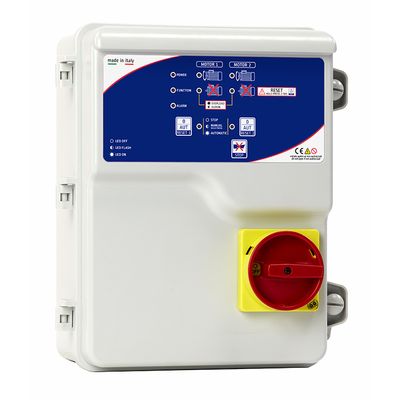

Salupo - Model MULTI 2 -Direct Starting Electronic Control Panel

FromSalupo S.a.s.

SHARE

Direct starting electronic control panel 2 motors for pressure booster, clean water and sewage.

Most popular related searches

pressure float switch

pressure switch

float switch probe

level controller

pressure cleaning

Multi application control panel
Single-phase version with power relay for inductive loads (up to 31A)
Protection for motherboard

INPUTS/OUTPUTS

N°4 very low voltage inputs
N°2 very low voltage inputs for motor klixon
N°2 alarm outputs 12Vdc max 200mA for siren and flashing Led lamp
Alarm output max 5A NC-COM-NO (pure contact)

PROTECTIONS

Maximum current protection for each motor with alarm
Lack and sequence of phases protection with automatic reset and alarm
Deactivable minimum and maximum voltage protection with automatic reset and alarm
Klixon protection for each motor with automatic reset and alarm

Operating voltage 230Vac +15/-20% 50/60Hz (SA674.xx)
Operating voltage 400Vac +15/-20% 50/60Hz (SA677.xx)
General disconnecting switch with door lock
N°2 buttons for automatic -0- manual operation
Siren shut-off button
Maximum current trimmer for each motor
Probe sensitivity trimmer 1÷100kohm
“POWER” Led light (supply mains)
N°2 running Led lights
N°2 motors’ overload Led lights
N°2 motors’ klixon intervention Led lights
N°2 motors’ status Led lights
“FUNCTION” Led light (inputs status)
“ALARM” Led light (level status)
Auxiliary circuit protection fuse
Motors’ protection fuse
N°2 contactors (SA677.xx)
External thermoplastic box
Cable glands
Protection degree IP65
Operating temperature -5/+50°C
Relative humidity 60% at 50°C (not condensed)

Configuration via Dip switch
Dry running with level control
Adjustable probes sensitivity
Deactivable alternarce of the 2 motors
3s delay between the starting of the 2 motors
Automating switching in case of motor failure
Siren shut-off
Operation with pressure switches, float switches and probes
