SAM Integrations Private Limited

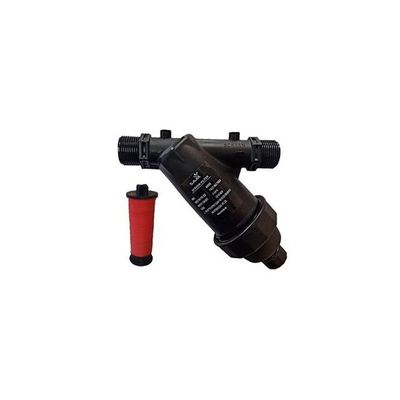

SAMModel 1 Inch -Disc Filter

SHARE

Helps In Filtration of Debris/ impurities Up to 120 µ ,Which gets Collected In The Over -head tank. Eliminates Non- Supended Impurities from Water, supplying clean water For Domestic Application. Easy maintenance and Easy to install and clean. Non Corrosive Stainless steel Filter Mesh and plastic Body. Filter body use Engineering plastic material.

Most popular related searches
  • Increase The Life Of R.O. System By Performing Pre- filtration
  • Increase The Life Of Sanitary Fitting And Fixtures
  • Impurties Does Not Accumulate In Pipeline
  • External Maintenance Free-No Part Replacement Required
  • Cleaner Water In Cases Where R.O. Is Not installed
  • One Time Investment

  • 1" BSP male threaded.

  • MAX.Working Pressure:- 8 kg/cm²
  • Nominal Flow Rate :- 6 m³/hr
  • Connection Size:- 1" BSP.
  • MAX.Pressure Drop :-0.40 kg/cm²
  • Connection Length:- 180 mm
  • Thread Length :- 22 mm
  • Max. Filter Height :- 170 mm
  • Max.Filter Width:- 82 mm
  • Filtration Elements:-DISC

  • Used in Irrigation Water Filtration system to clean the water
  • Domestic and industrial application and water filtration
  • Applicable For medium and low flow rate
