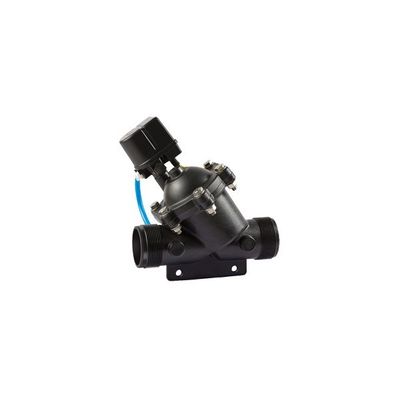

SAM - Model 2 Inch -Solenoid Valve

SHARE

Designed Pressure: Upto 10 Kg/Sq.cm. Operting Pressure Range: 0.7 to 10Kg/sq.cm. Minimum Sealing Pressure: 0.7 Kg/Sq.cm. Supply Voltage: - 2o-28 V AC, 50/60 Hz. Temperature Range: Water upto 60° C.

Most popular related searches
automated valve
solenoid valve
pipeline distribution
pressure seal
  1. Inlet Thread: 2" BSP Male Thread.
  2. Outlet Thread: 2” BSP Male Thread.
  1. Superb Hydraulic performance with High Kv Factor.
  2. Low Pressure Loss.
  3. Low power consumption.
  4. Normaly closed type.
  • It is widely used in automatic irrigation sprinkler systems using controller.
  • Used in drip irrigation system.
  • Can be used in downstreem pipeline & distribution lines.
  • Wide range of industrial applications.
  • Can be used for simple on/off functioning of valve.
  1. Body,Cover:30% Glass Filled Nylon.
  2. Diaphragm:NR with Nylon Fabric Reinforced.
  3. Seal:Natural Rubber.
  4. Spring:Stainless Steel.
  5. Cover Bolts:Stainless Steel.
  6. Tubing & Fitting:
  7. Solenoid Pilot Unit:Special Pilot.
  8. Weather Resistant, Encapsulated Design.
