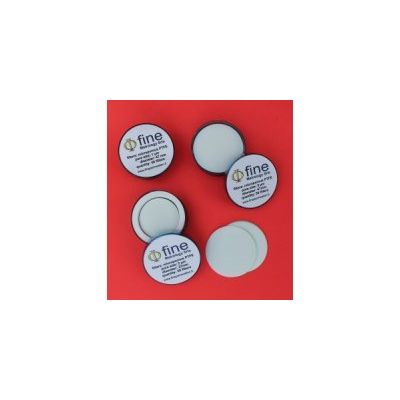

Fine Metrology - Model PTFE -Sample Filters for Air Quality Analyzers

Specification

• pore size: 1 µm or 5 µm (by Hg intrusion)
• porosity: 35%
• air flow: 1.2 l/min 47 mm ∅, 10 mbar (± 0.2)
• water intrusion pressure (WIP): 10 psi (min)
• thickness: 0.004 inches (± 0.001)

Other Application

• Clarifying acids, bases, and solvents
• Air monitoring
• Filtering or venting gases
• UV spectroscopy

Ordering Information

pore size: 1 µm, 5 µm,

• package 25 filters, ∅ 25 mm,
• package 50 filters, ∅ 25 mm,

pore size: 1 µm, 5 µm,

• package 25 filters, ∅ 37 mm,
• package 50 filters, ∅ 37 mm,

pore size: 1 µm, 5 µm,

• package 25 filters, ∅ 47 mm,
• package 50 filters, ∅ 47 mm,

pore size: 1 µm, 5 µm,

• package 25 filters, ∅ 54 mm,
• package 50 filters, ∅ 54 mm,
