Hydroman® - Model 100TJQ -Sand Agitator Submersible Dredging Pump

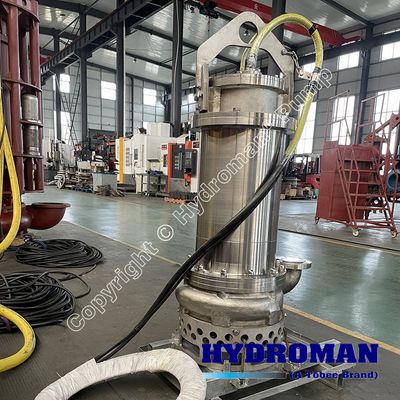

Hydroman® 100TJQ Sand Agitator Submersible Dredging Pump
is the 4inch submersible sand pump made by stainless steel material, so also called stainless steel submersible slurry sand pump, is essential for demanding applications where reliability and resistance to wear and corrosion. SS and Duplex SS Submersible slurry pump for highly acidic environments including acidic, alkaline, or saline conditions made of stainless steel in SS316, SS316L, SS304, duplex SS 2205 etc. to widely use in mining, dredging, construction, wastewater treatment, and industrial applications where durability and resistance to wear and corrosion.

Hydroman® 100TJQ Sand Agitator Submersible Dredging Pump Specification
Size: 65-600mm
Capacity: 15-4000m3/h
Head: 10-125m
Max. particles: 120mm
Max. concentration: 70%
Max. working depth: ≤ 150m
Agitator or Cutterheads: Available
Sealing arrangement: Double mechanical seal
Materials: Hyperchrome alloy, Cast iron, SS304, SS316L, Duplex SS etc

Hydroman® 100TJQ Sand Agitator Submersible Dredging Pump Advantages
• Corrosion-resistant – Stainless steel submersible slurry pump is suitable for aggressive chemical and saline environments.
• Abrasion-resistant – Submersible sand gravel pump in SS316 stainless steel is Long-lasting performance with abrasive particles.
• Low maintenance – 316 stainless steel submersible slurry pump for cleaning slurries from an acid water pool with durable construction reduces downtime.
• Energy-efficient – Optimized hydraulic design for reduced power consumption.
• Easy installation – No priming required, operates underwater.

Hydroman® 100TJQ Sand Agitator Submersible Dredging Pump Versatile Applications
• Chemical Effluents: Handling corrosive fluids in chemical processing, metal plating, or pharmaceutical industries
• Acid Mine Drainage: Pumping acidic or alkaline wastewater from abandoned mines.
• Stormwater Management: Clearing sediment-laden water during floods or heavy rains
• Ore Slurries: Transporting crushed ore, tailings, and mineral-rich slurries.
• Processing Plants: Pumping abrasive mixtures during mineral separation or refining.
• Tailings Management: Transferring waste materials to disposal or storage sites.
• River/Lake Dredging: Removing sand, silt, gravel, and sediment to maintain waterways.
• Sand Mining: Extracting sand from quarries, riverbeds, or coastal areas.
• Land Reclamation: Pumping sand-slurry mixtures to create new land or restore coastlines
• Piling Operations: Managing abrasive slurries generated during foundation drilling.
