Greatwall - Model ZSL Series -Sand Making Plant
ZSL series sand-making plant is a high-grade environmental protection dry sand-making plant, includes sand making, screening, feeding, conveying, dust removal and other systems.
- Processing Capacity: 60-200TPH
- Max. Feeding Size:100mm
- Application Fields: Water conservancy and hydropower, building materials, municipal engineering, mining, cement, sand and gravel plants, etc..
- Applied Materials: Limestone, feldspar, calcite, talc, barite, dolomite, kaolin,etc.
- Customized Service:Small, medium and large models can be customized to meet your needs.

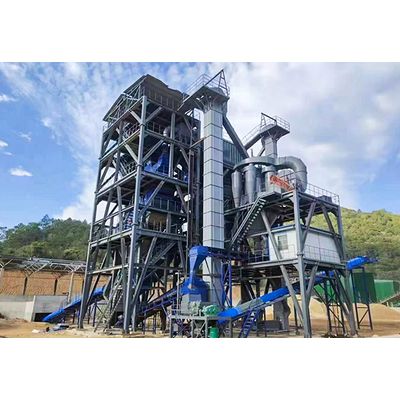

ZSL series sand-making plant is a high-grade environmental protection modular dry-processed sand production system independently developed by Great Wall Machinery.
The sand-making plant adopts the modular assembly method of the steel frame structure, which combines sand-making, screening, feeding, conveying, dust removal, and other systems in a building structure. With the intensive design, a small footprint, a short construction period, a fully enclosed layout, and high environmental protection standards, it is a complete set of high-grade dry sand production systems.
- Sand can be made from various rocks, like limestone, river pebbles, granite, basalt, diabase, various tailings, etc.;
- Processing of aggregates in concrete batching plants, asphalt batching plants, and road pavement and construction aggregates;
- Machine-made sand production and stone shaping for water conservancy and hydropower, highways, high-speed railways, passenger dedicated lines, bridges, airport runways, municipal engineering, and high-rise buildings;
- Match with dry powder mortar equipment to produce high-quality machine-made sand.
Intensive Design
Small footprint, tower-style design, modular assembly, strong flexibility, suitable for sand making and shaping of various materials.
High environmental standards
The sand-making building adopts a fully enclosed conveying, production, and negative pressure dust removal design. The fully enclosed structure realizes that the dust emission concentration at the production site meets the national environmental protection standard; no vibration ensures no sewage and no sludge in the production, and the noise emission meets the national environmental protection requirements.
High sand formation rate, comparable to natural sand
The sand-making building adopts an SR series sand-making machine, air screen (free adjustment or control of powder content in finished materials), grading screening module, and grading adjustment module to form a return closed-circuit system, which greatly increases the production of 0.6~0.15mm particle size range of sand; the particle shape is a polygonal cube, comparable to natural sand, the fineness modulus of the finished product is stable and adjustable between 2.2-3.0, the particle distribution is uniform, and the gradation is continuous and stable; the content of finished stone powder is controllable between 3-15%.
Highly intelligent control
Through the centralized control system or PLC automatic control system, all-around online real-time monitoring of the production status of the equipment can be realized to ensure the safety, stability, and continuity of each production link.
