Adamant Valves - Model AV-7G -Sanitary Gauges
FromAdamant Valves
Application
AV-7G series sanitary gauge is mainly applied to tank equipments to observe the conditions of inside liquids. It can be also used for sampling.
Materials
Materials: AISI-316L
Size: 1/4''-3/4''
Seals: PTFE
Technical Specification
End connection: threaded, clamp, welded as customers require.
Size available: 1/4", 3/8", 1/2", 3/4"
Max. working pressure: 147psi (10bar)
Min. working pressure: vacuum
Working temperature: 14 ~ 248°F (-10 ~ 120°C), EPDMMost popular related searches
sanitary sampling valve
sampling valve
sanitary sampling
physical chemical analysis
chemical analysis
pipe system
sanitary valve
material sampling
microbiology analysis
Sanitary sample valve is a type of valve used in process industries that allows taking a representative portion of a fluid (gases, liquids, fluidized, solids, or slurries) to test (e.g. by physical measurements, chemical analysis, microbiological examination), typically for the purposes of identification, quality control, or regulatory assessment. It is a valve used for sampling.

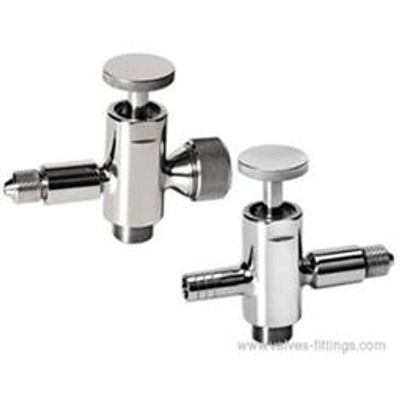

Adamant Valves AV-7 series Sample valves are used in piping systems or on tanks for sampling. It can also be assembled at the bottom of the tank or pipeline for residue drain.
