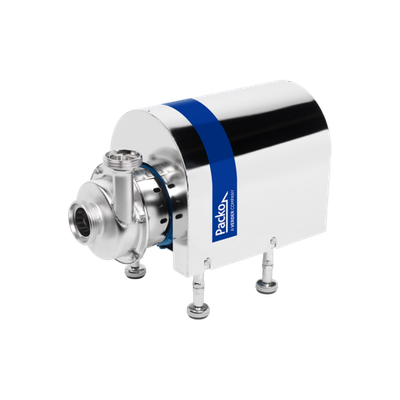

VerderModel FP60 -Sanitary Pump

SHARE

These low cost pumps have stainless steel 316L pump casings constructed in cold rolled plate, 100% non-porous and extremely smooth. The pumps have open investment cast impellers in 316L. Thanks to its crevice-free design and electropolishing as a final surface treatment, the FP60 pump series are a reliable component for your food production process.

Most popular related searches

Property:

  • Max. flow: 40 m3/h
  • Differential head: 27 m wc
  • Max. Inlet pressure: 3 bar
  • Viscosity: 500 cP
  • Max. temperature: 95 °C
  • Impeller type: Open
  • Max. free passage: 15 mm
  • Max. drive power: 2.2 kW
  • Speed: 3000 / 3600 rpm
  • Available frequency: 50 / 60 Hz
  • Materials wetted parts: Stainless steel 316L or similar
  • Mechanical seal configuration: Single, quench
  • Available material O-ring: EPDM, FKM
  • Connections: Hygienic fittings
  • Surface finish: Hygienic quality, internal welds hand polished + electropolished (casing 0.8 μm - impeller 3.2 μm)
  • Certificates: 1935/2004 EC. MEI. ATEX. FDA. EAC
