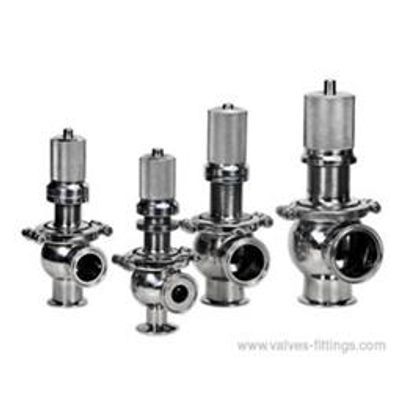

Adamant Valves - Model AV-9 -Sanitary Safety Pressure Relief Valves
FromAdamant Valves
Application
AV-9 series sanitary stainless steel safety valve, also known as "pressure relief valve", is used to control over pressurization in a process piping system.
Materials
Materials: AISI-316L
Size: 1''-1 1/2''
FDA seals: PTFE
Options: Silicone, EPDM, Viton
Lip seal: EPDM
Options: Silicone, Viton
Other seals: EPDM, all seals complying with FDA 21CFR177.2600
Working Principle
When the line pressure exceeds the limit set for the safety valve, the valve plug will lift and release the pressure through the side port. The valve will remain open until the line pressure decreases to a value lower than the set value.Most popular related searches
pressure relief valve
relief valve
safety relief valve
sanitary valve
pipe system
pressure relief safety valve
pressure pipe system
plug valve
pressure pipe
Sanitary safety valve/pressure relief valve is a valve mechanism for the automatic release of a substance from a boiler, pressure vessel, or other system when the pressure or temperature exceeds preset limits.
Adamant Valves AV-9 series pressure relief valve is a type of valve used to control or limit the pressure in a system or vessel which can build up by a process upset, instrument or equipment failure.
