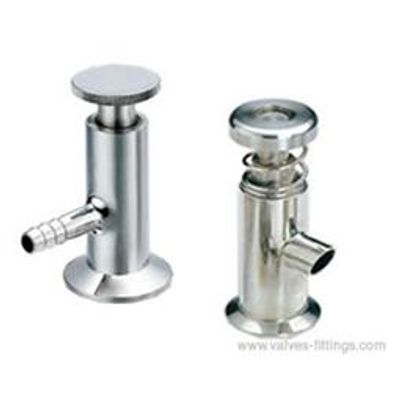

Adamant Valves - Model AV-7S -Sanitary Sampling Valves
FromAdamant Valves
Application
AV-7S Sampling valves are used in piping systems or on tanks for sampling. It can also be assembled at the bottom of the tank or pipeline for residue drain.
Materials
Materials: AISI-316L
Size: 1/4''-3/4''
Seals: PTFE
Gasket: EPDM or NBR
Standard Design
End connection: threaded, clamp, welded as customers require.
Sampling port size available: 1/4", 3/8", 1/2",3/4"
Max. working pressure: 10bar
Max. working temperature: 248°FMost popular related searches
sanitary sampling valve
sampling valve
sanitary sampling
sanitary valve
pipe system
chemical analysis
physical chemical analysis
microbiology analysis
gaskets
gasket sealing
Sanitary sample valve is a type of valve used in process industries that allows taking a representative portion of a fluid (gases, liquids, fluidized, solids, or slurries) to test (e.g. by physical measurements, chemical analysis, microbiological examination), typically for the purposes of identification, quality control, or regulatory assessment. It is a valve used for sampling.
Adamant Valves AV-7 series Sample valves are used in piping systems or on tanks for sampling. It can also be assembled at the bottom of the tank or pipeline for residue drain.
