ISOIL Industria Spa

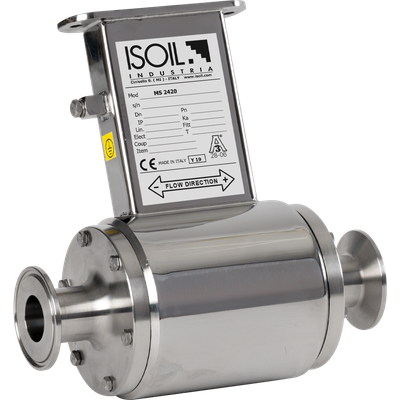

ISOMAG - Model MS 2420 -Sanitary Sensor for Electromagnetic Flow Meters
The MS 2420 sanitary sensor by ISOMAG is designed for electromagnetic flow meters, specifically engineered for usage in food and pharmaceutical production environments. Its construction facilitates easy disassembly of connections for the inspection or replacement of gaskets. The sensor is vacuum resistant up to 200 mbar absolute at 100°C, making it ideal for Clean-In-Place (CIP) processes. The product complies with 3A and FDA regulations, offering flexibility with various process connections and electrode materials. This sensor is part of ISOIL Industria's extensive range of flow measurement solutions since 1958, supporting applications that demand precise flow management, such as in energy meters, ultrasonic flow meters, and industrial automation systems. The product's specifications boast a nominal diameter range from ND 25 to ND 100 and a flow range up to 280 m3/h, suitable for diverse industrial requirements.Most popular related searches
electromagnetic flow meter
flow meter
cleaning in-place (CIP)
sanitary electromagnetic flow meter
flow monitoring system
ultrasonic flow meter
flow monitoring
gaskets
flow meter system
flow metering system
The MS 2420 sanitary sensor ISOMAG for electromagnetic flow meters, with a design that allows the disassembling of the connections for inspection or replacement of gaskets is specific for use in food or pharmaceutical plants.
It is resistant to vacuum (200 mbar absolute at a temperature of 100 ° C), ideal for CIP cycles, 3A and FDA certified.
ISOIL Industria offers a wide choice for process connections and electrode material.
The sanitary sensor for electromagnetic flow meters MS 2410, flow meters, energy meters, ultrasonic flowmeters, and industrial automation systems have been ISOIL Industria‘s passion and continuous research since 1958, and for any information or advice please do not hesitate to contact our specialists.
- Body material: SS AISI304/316
- Nominal diameter: from ND 25 to ND 100
- Flow range: 0..280 m3/h
- Nominal pressure: PN 16
- Wide choice of process connections
- Liquid temperature: from -20 to +150°C for separate version
- Lining materials: PTFE
- Available in compact or separate version
- Accuracy and repeatability data are according to the chosen converter (see converters section).
