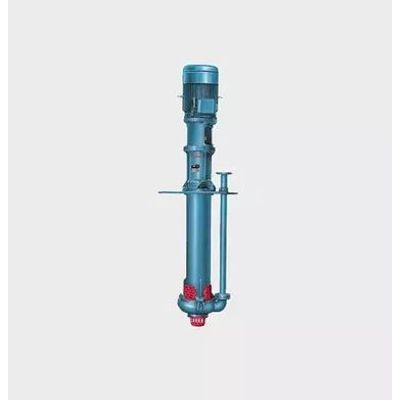

Sanlian - Model SP-Type -Submerged Slurry Pump
SP type pump is vertical centrifugal slurry pump,which is put under water.It is used to transport various abrasive corrosive slurry as well as clean water.Allowable maximum particle diameter is 15mm,and the temperature of liquid is less than 80? normally.There is no need of any shaft seal,and when the suction is not enough,it can also operate normally.Wear resistant material is applied for the wet part.
Application Area
It is applied in coal mining,mines,metallurgy and electricity,etc.
Performance Range
- Outlet diameter:DN=40-200mm(1.5"-8")
- Capacity:Q=12.6-597m3/h
- Head:H=5-34m
- Speed:n=400-2200r/min
- Matched power:P=1.1-160kW
Structural Characteristics
SP type pump is vertical centrifugal slurry pump.The pump inlet is vertically downwards,and the outlet is vertically upwards at the other side.The pump is mainly made up of lower filter screen,pump casing,impeller,shaft,guard plate,bracket and so on.The upper part of pump is supported by bearing.The pump is mounted under water without need of any shaft seal.Wear-resistant material is applied for wet part.
