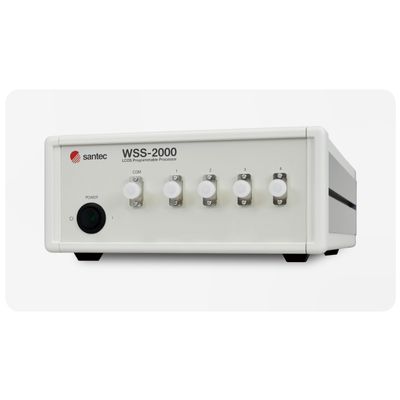

Santec - Model WSS-2000 -LCOS Based Programmable Optical Filter
The WSS-2000 is an advanced LCOS based Programmable Optical Filter developed by Santec. Utilizing proprietary LCOS (Liquid Crystal on Silicon) technology, this device offers unparalleled flexibility in optical filtering, attenuation, and switching configurations. Engineers can exploit its ability to execute a wide range of optical filtering schemes, with applications that include high-speed signal equalization, advanced optical transmission systems such as DWDM and OFDM, and as a versatile test and measurement tool. The WSS-2000 features optical switching configurations of 1x1, 1x2, and 1x4, along with an optional phase control and various specifications like a broad operating wavelength range of 1528.383 nm to 1567.543 nm and fine frequency setting resolution. Offering precise control with attenuation range up to 20dB and a setting resolution of 0.01dB, it supports innovative research in next-generation optical network technologies. Demo units are available under defined rental terms, facilitating hands-on evaluations.
The WSS-2000 is a LCOS based Programmable Optical Filter. Santec's proprietary LCOS (Liquid Crystal on Silicon) technology inside the WSS-2000 offers the ultimate in flexibility, enabling the user to program a limitless range of optical filtering, attenuation and switching schemes. In addition, the phase control function is also available. The WSS-2000 is an enabling technology for investigating next generation optical networks by utilizing the filter as an optical equalizer of high-speed signals, as an adaptive channel filter for advanced optical transmission systems (DWDM, OFDM), as a WSS emulator or as a flexible test and measurement system.
- Programmable arbitrary spectral generation and spectral shaping
- Fine frequency and bandwidth control using LCOS. Setting resolution 0.78GHz (typ.)
- Excellent optical filtering with steeper edge 400dB/nm (typ.)
- Optical switching configuration (1x1, 1x2, 1x4)
- Optical phase control function (Option)
- Optical amplifier testing and evaluation with optical equalizer for high-speed optical signal
- 100Gb/s, 400Gb/s high speed transmission test
- Adjustable and adaptive DWDM,OFDM channel filtering
- Flexible test and measurement
- Next generation bundle wavelength OXC
- Pulse shaping
- Optical comb generation
- Wavelength Selective Switch (WSS) emulator
