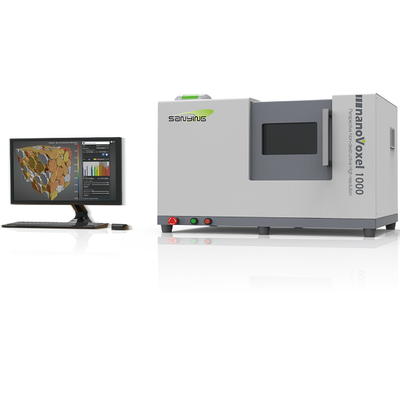

SANYING - Model nanoVoxel-1000 -Compact Desktop CT System
The nanoVoxel-1000 is a compact desktop CT system engineered for high-precision imaging applications. It achieves remarkable detail resolution of 300nm, making it suitable for intricate inspection tasks. The system's sealed tube-ray source minimizes maintenance requirements and the need for consumables. Additionally, the robust seismic isolation design allows for deployment in dynamic environments such as on vehicles and ships. It has a spatial resolution of 2μm, supported by a 110KV X-ray source and a flat panel detector with an imaging area of 145mm x 114mm and a pixel matrix of 2940 x 2304 pixels. This system can accommodate samples up to 300mm in diameter and 200mm in height, with a maximum weight of 15kg. Its equipment dimensions are 900mm x 500mm x 660mm, and it weighs 500kg. The nanoVoxel-1000 is versatile, featuring configurable hardware and software to meet diverse application demands, and supports in situ 4D imaging for dynamic analysis under various mechanical and temperature loads.
The nanoVoxel-1000 is a desktop CT tomography system carefully built by Sanying based on years of research and development experience in high-resolution micro CT instruments. With 300nm detail resolution capability and a small size, it meets the installation requirements of most laboratories and adapts to the use in the wilderness. It is an economical choice for testing medium- and low-density and medium- and small-size samples.
- 300nm of detail resolution
- Desktop design, easy to install
- Tube-sealed ray source, no need for consumables and simple maintenance
- Good seismic isolation design to meet vehicle and shipboard use
Resolution
Detectability : 300nm
Spatial resolution* : 2μm
X-ray source
Tube type : Sealed
Voltage : 110KV
Detector (Flat panel)
Imaging area : 145mm×114mm
Pixel matrix : 2940×2304
Sample
Maximum size : 300mm×200mm(diameter × height)
Maximum weight : 15kg
Equipment
Dimension : 900mm×500mm×660mm（length × width × height）
Weight : 500kg
