SAS - Stainless Steel Fume Hoods

SHARE

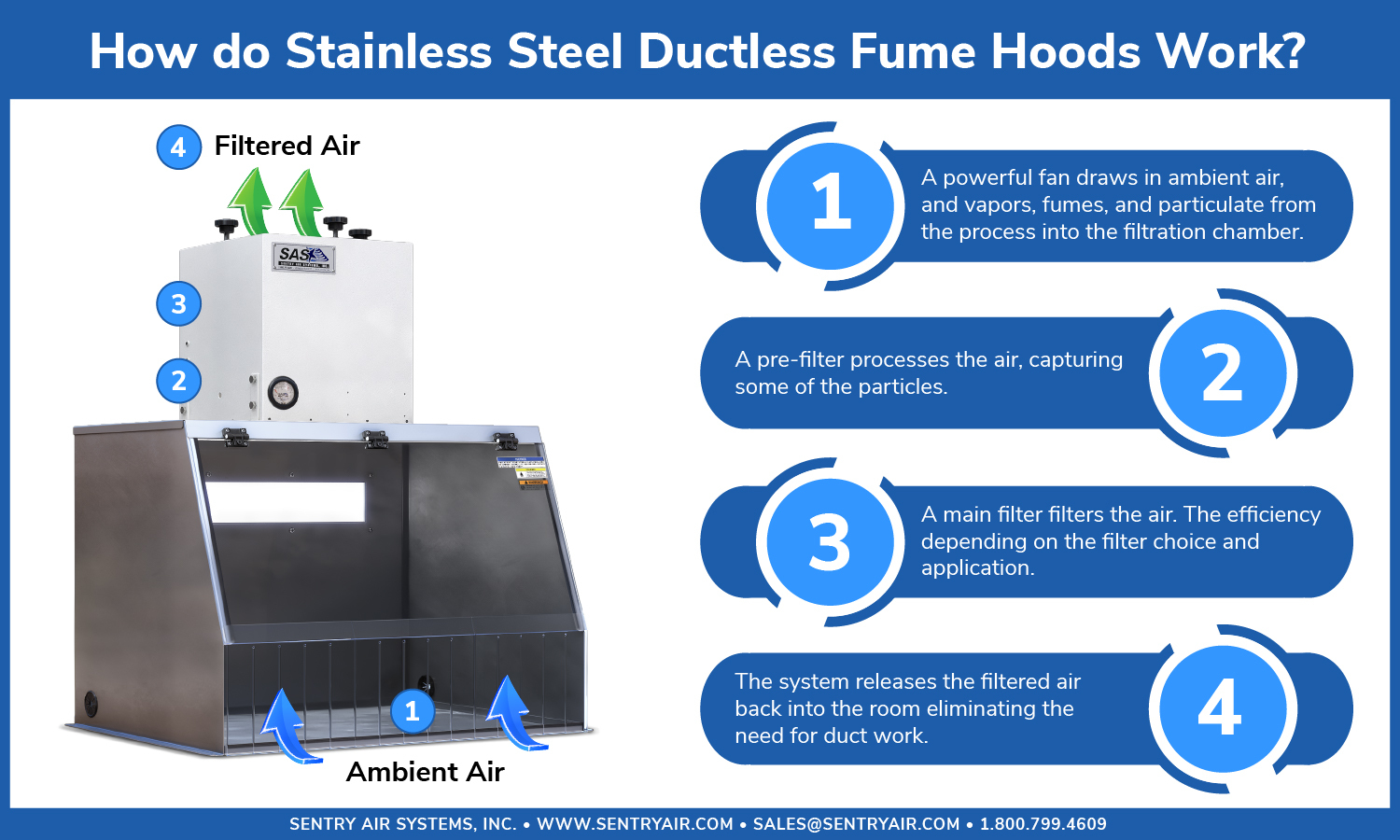

The Stainless Steel Fume Hood is designed to pull harmful particulate away from the operator and dispense the toxins into a high quality filtration system. This fume hood utilizes powerful air flow in a sturdy, compact enclosure for optimal protection from hazardous fumes, spills, and contaminants. Typical uses for a Stainless Steel Fume Hood are chemical fume control, pharmaceutical compounding containment, soldering applications, light dust removal, biological applications, solvent or epoxy use, and many more applications that require the removal of fumes and particulate.

Most popular related searches
fume hood
ductless fume hood
laboratory sterilizer
laboratory sterilization
fume control
dust control
pharmaceutical laboratory
decontamination product
biological research
laboratory cleaning

Stainless steel fume hoods, manufactured by Sentry Air Systems, provide a portable, energy efficient, and economical solution for many commercial, medical, laboratory and industrial applications that require the unique features of a stainless steel containment hood.

A stainless steel fume hood is an ESD-Safe containment hood that primarily functions as an engineering safety control to protect the user from harmful contaminants that could be produced through several different applications. By utilizing the qualities of the type 304, 16-gauge stainless steel, these fume hoods offer resistance to a wide range of chemicals, moisture and heat resistance, and can be easily cleaned or decontaminated.



Typically, the applications for a stainless steel ductless fume hood are biological sciences, dust removal, soldering, pharmaceutical compounding containment, chemical fume control, solvent or epoxy use, and many other applications that require the removal of harmful fumes and particulate in a confined area.

On most occasions stainless steel fume hoods are recommended for applications that produce heat or moisture, will require a surface that can be cleaned easily, or a static charge.

  • Minimize employee exposure to contaminated air.
  • Meet your legal obligations
  • Heavy Duty Construction
  • Low power consumption
  • Reliable , low maintenance operation
  • No permitting issues for venting outside (ie. EPA air sampling)
  • ESD Safe Fume Hood
  • Weather Resistance (highly tolerable to moisture and heat)
  • Cleanability
  • Cost-Effective

Hood Dimensions:
- O.D.: 23.5"D x 32"W x 24"H
- I.D.: 23.25"D x 30"W x 24"H

Hood Material:
- 16awg 304 Stainless Steel
- All Fasteners 304 Stainless Steel

Motor:
Fractional Horsepower

Weight:
Approx. 100 lbs.

Blower Dimensions:
13" L x 13" W x 14.5"

Approximate Inlet Velocities: Pre-filter & 99.97% HEPA Filter - 130 FPM High; 25 FPM Low
Pre-filter & Heavy-duty Carbon Filter - 115 FPM High; 20 FPM Low

Electrical:
115/1/60, 2 amps
220/1/50, .75 amps

Sound Level:
61 to 66 dba (Blower Speed: Low to High)

Max Operating Temperature:
Not to exceed 170 degrees Fahrenheit

Warranty:
Limited two-year warranty from date of shipment on defects due to materials or workmanship.

Patented Design:
U.S. PATENT #5,843,197
