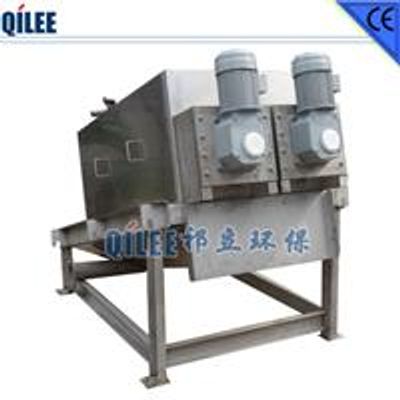

QILEE - Model QLD101 -Satcked Waste Water Dewatering Filter Press

FromShanghai Qilee Environmental Protection Equipment Co., Ltd

SHARE

The main part of the dehydrator is a filter device that a screw runs through the stacked fixed rings and moving ring. The small gaps between fixed rings and moving ring can filter the sludge, and the lumen between screw and rings is filled with polymer grains. The moving ring transfers the sludge to the end of the machine with pressure and extrudes sludge cakes. The running of the screw drives the moving ring to clean the gaps and avoid jam.

Most popular related searches

dewatering filter press

dewatering filter

sludge dewatering

waste dewatering

dewatering press

Suitable for sludge dewatering of high/low consistency. When deal with low consistency sludge(2000mg/L), there is no need to build a thickening tank, storage pool. Reduce the cost and the release of phosphorus and Anaerobic stink.
There is no need to worry about jam up. Reduce the cleaning water consumption.
The electrical cabinet, disposal tank and dehydrator are integrated, which reduces the covering area and brings convenience to installment.
The dehydrator is enclosed working, which reduces the bad smell and improves the working environment.
Automatically working for 24 hours, reducing the labor strength of workers.
The slow running speed of screw shaft reduces the power consumption and noise.
It is made with stainless, extending the service life.
It is convenient for daily maintenance.
