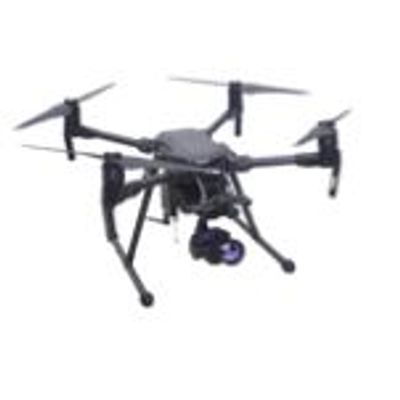

Satir - Thermal Imaging UAV Drone System

SHARE

The newest product  from SATIR is a thermal imaging UAV drone system that incorporates the very best thermal imaging cores with high quality manufactured UAV systems.  The UAV system support HDMI & SD video signals. It has a  high gain tablet directive antenna; transmission distance can reach 10km.  The SATIR Thermal imaging UAV Drone systems can be used in a number of different applications such as search & rescue, Agricultural Surveys and Power surveys.

Most popular related searches
thermal imaging
thermal imaging system
temperature monitoring

UAV 640 P

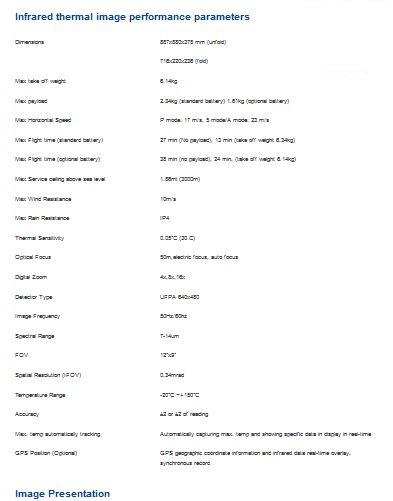

The UAV 640 P has a UFPA 640x480 detector which is a high-quality detector which will deliver clear, crisp thermal images and video to the end-user. It has electric and auto focus up to 50m. The FOV is 12°x9° and spatial resolution (IFOV) of 0.34 mrad.  It has a measurement temperature range of -20°C ~+150°C with an accuracy of ±2 or ±2 of reading.
