SBM - Model CDF -Multi-Head Classifier
The CDF multi-head classifier cooperates with different kinds of grinding mills. In the grinding process of calcite, mica, gypsum, barite, kaolin, talc, limestone, silica, Mg/AL(OH)3, carbon black, metal powder, wood powder, and other materials, the powder is accurately classified. The final product is widely used in plastic, rubber, painting, food, abrasives, ceramics, new materials, and other industries.
Most popular related searches
grinding mill
cyclone separator
carbon black powder
black carbon
centrifuge
blower
dust separator
dust separation
dust collection

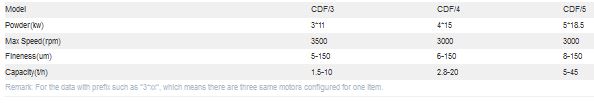

- Capacity: 1.5-45 t/h
- Range of application: calcium carbonate, kaolin, quartz, talc, mica, etc
- From the bottom-feeding inlet, the materials are sent to the separating field by inhaling of air blower.
- Coarse and fine materials are separated by the powerful centrifugal force generated by a high-speed rotating classifying turbine.
- The qualified fine powders are sent into a cyclone separator or dust cleaner to be collected by a classifier blade.
- The unqualified coarse powder with little fine powders hit the classifier surface, fall down to the grinding chamber, and reground.
- High rotated speed and accurate vertex cutting. According to the hydromechanics principle, optimize the structure and the gag between the impeller.
- High Capacity and low consumption. The max capacity can be reached 50 t/h, and the electricity consumption is much lower than the traditional classifier.
- PLC automatic control system, running real-time display, easy to operate.
- Horizontal classifying turbine unit with high speed and accurate vertex cutting
