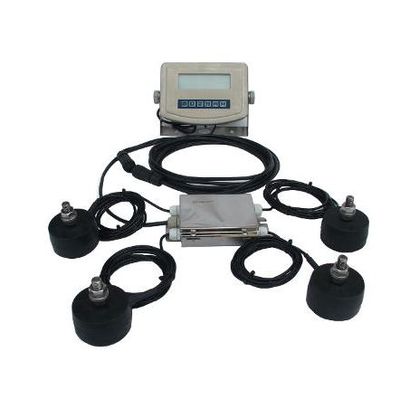

Agreto - Scale Kit with Weighing Feet
The Agreto scale kit with weighing feet is the easiest way to retrofit silos, tanks, mills, feed mixers etc. with weighing equipment. The weighing feet are sturdy, waterproof and very easy to install. The weighing range is from 3,000 to 8,000 kg.
Most popular related searches
Benefits of scales with weighing feet
- Immediate monitoring of existing, produced or used quantities in many areas
- Control of purchased or sold quantities
- Timely reordering of goods
- Very easy way to retrofit a scale
Tanks
Due to the easy assembly, the agreto weighing feet are ideal for tanks, even in humid areas
Silos
For silos, the agreto scale kit can be customized in the capacity and number of feet depending on the requirement.
Feed mixer
If the feed mixer is equipped with weighing technology, the filled quantity can be read off during work.
Feed mill
Even heavy vibrations like on a feed mill are no problem for the agreto weighing feet.
- Material: stainless steel (all visible parts)
- Rated load 1 t version: 1,000 kg / 2,200 lbs per foot
- Rated load 2 t version: 2,000 kg / 4,400 lbs prt foot
- Safe overload: 150 %
- Accuracy: 1 %
- Full scale output: 2 mV / V
- Excitation: 5 to 12 VDC
- Operating temperature: -35 to +70 C, -31 to +158 F
- Protection class: IP68
- Cable length: 3 m
- Dimensions (1 foot): 80 x 80 x 98 mm (l-w-h)
- Box dimensions (set): 330 x 330 x 200 mm (l-w-h)
