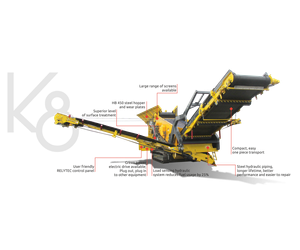

Keestrack - Model K8 -Scalper
FromKeestrack N.V.
The most versatile scalper on the market with the biggest screen area. The K8e has a large range of screen boxes and screening media available and can be equipped with a Bivitec flip flow screen box. The K8e is designed for heavy duty scalping in quarry applications to ultra-fine screening depending on its set-up and installed screen box and screen media. The hybrid diesel-electric drive includes full electric, plug-in, processing and it has a plug-out function to drive other equipment.Most popular related searches
- Available in full hybrid e version
- Biggest mobile screen on today's market
- Double deck screen box 6.000 x 2.000 mm (20’” x 7’)
- 12 m² screening surface on each deck
- Capacity up to 1200 tonnes / hour
- Optional Double deck Bivitec FLIP FLOW screen box 6.000 x 1.900 mm (20’ x 6’)
- Screening force up to 40 G
- 11,4 m² screening surface on each deck
- Capacity up to 600 tonnes / hour
- Optional magnet
- Feed hopper 12 m³ or optional infeed belt
- Large range of screen meshes, punched plate, polyurethane decks available
- 2 speed track drive
- Extensive option list to configure to your application
- Weight
43,5 t (47 sT) - Length
15.354 mm (50’4”)
17.440 mm (57’3”)
19.400 mm (63’8”)
Lenght with infeed belt
16.050 mm (52’8”) - Height
3.600 mm (11’10”)
4.920 mm (16’2”)
5.000 mm (16’5”) - Width
3.200 mm (10’6”)
15.655 mm (51’4”)
15.655 mm (51’4”)
- Fine screening
- Screening of difficult, sticky or wet materials to an infinite variety of sizes
- Recycling
- Compost & peat
- Aggregates
- Wood
- Sand and gravel
- Iron ore
- Concrete
- Asphalt and others
