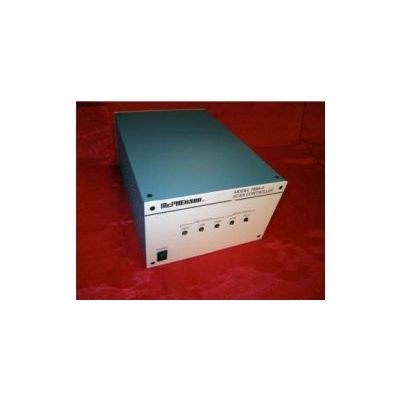

Simple scanning! The 789A-4 drive controller includes auto-direction setup. Just connect it to a suitably equipped monochromator; There are fault indicator lights if there is a problem with drive circuitry. A complete list of ASCII commands appear on the reverse side of this data sheet. Example programs are available upon request. National Instruments LabView™ software drivers are available for download.
When ordered with a system, the Model 789A-4 comes complete with stepper motor to fit McPherson monochromators or sampling accessories. The cables for limit switches, motor, RS232 communications (with a USB adapter), and power input are included.
If ordered as a retrofit for an existing monochromator an internal switch for motor direction is provided. Indicate the model and serial number of the instrument.
- No front panel setup required
- Limit Switch & Motor Interlock systems
- Slew function permits high speed `Go To`
- LED’s provide “at a glance” information
- RS232 communications standard
- USB adapter included
- Homing function with LED indicator
- Universal Power Input
- AC Input : 90-240 VAC 29 Watts
- Line Frequency : 50/60 Hz
- Motors Controlled : 1
- Motor Type : NEMA Size 23 2 Phase Bipolar. Low Inductance
- Motor Inductance : 0.2 to 80 mH
- Motor Resolution : 200 to 50,800steps/revolution; factory set to 36.000steps/revolution
- Standard Motor Current : 2.5 Amperes
- Maximum Velocity : 100 RPM @ 36.000 steps/revolution
- Protective Circuits : Short Circuit. Under Voltage. Over Temperature, Motor Interlock, Automatic Direction Detection on Selected Monochromators
- Panel Indicator LEDs : High/Low Limits. Home. Scan Status, and Fault
- Rear Panel Connectors : Power, Motor, Auxiliary (Limits), RS232
- Remote Control : RS232 - 9600 Baud (USB adapter included)
- Line Fuse : 2A/120 VAC or 1A/240 VAC
- Operating Temperature : 0 to 50°C
- Storaqe Temperature : -40°C to +85°C
- Dimensions (Inches) : 8.38 WX 5.20 HX 12.00 D
- Weight : 5.5 lbs {2.5 Kq)
- Optional Mounting : Rack Mounting Kit (Consult Factory)
- Optional Motors : NEMA Size 17, 34, 2 Phase Bipolar (Consult Factory)
- Optional Motor Current : Up to 4.8 Amperes Peak (Consult Factory)
