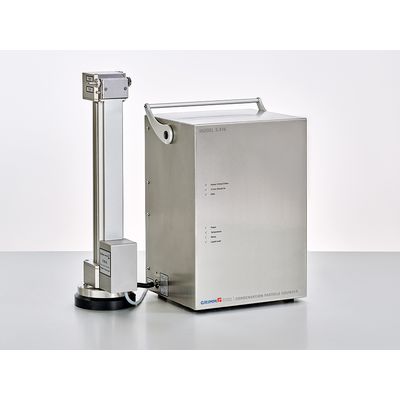

GRIMM - Model 5416 SMPS+C -Scanning Mobility Particle Counter and Sizer
SECURE YOUR DISCOUNT TODAY! Nano Particle Counter and Sizer. The GRIMM SMPS+C systems feature the Vienna-type DMA design (Winklmayr et al., 1991; Reischl et al., 1997), well known for highest size resolution and lowest particle diffusional losses – even for the smallest particles. The SMPS+C systems based on the GRIMM 5416 CPC are operated at an aerosol inlet flow rate of 0.3 L/min and a sheath flow rate of 3 L/min. GRIMM offers a flexible design of the Vienna-type DMA with two electrodes of different length to accommodate a variety of experimental needs. To expand the size range, the GRIMM SMPS+C can be combined with a GRIMM Optical Particle Counter to build a Wide Range Aerosol Spectrometer (WRAS) that measures size distributions up to the particle size of 32µm.
- particle size distribution from 5 – 1094 nm
- two Vienna-type DMAs
- sample flow rate = 0.3 L/min
- sheath flow rate = 3 L/min
- rugged, compact and reliable
- fully automated use with our software
- analog inputs for additional sensors
- anti-spill CPC-saturator design
- operates with air and inert gases
- comprehensive self-test for highest reliability
- fundamental aerosol research
- filter testing
- environmental & climate studies
- nanotechnology process monitoring
- printer emission studies
- inhalation & exposure studies
- studies on atmospheric nucleation
- studies on nanoparticle growth, coagulation & transport
- engine exhaust studies
- mobile aerosol studies
- workplace monitoring
- detector type : condensation particle counter (CPC)
- working fluid : n-butanol (n-butyl alcohol)
- max. concentration single count mode : 150 000 p/cm3
- max. concentration photometric mode : 107 p/cm3
- reproducibility : > 95% for single count mode, > 90% for photometric mode
- rise time t10 - t90 : < 3 s
- size range :
- M - DMA 5 – 350 nm
- L - DMA 10 - 1094 nm
- size resolution : stepping mode: 45 - 255 channels scanning mode: 64 channels per decade logarithmic spacing
- DMA dimensions :
- Ri = 26 mm, Ro = 40 mm
- L= 88 mm (M) or 350 mm (L)
- output HV module : 5 – 10 000 V positive polarity negative polarity on request
- internal pump : yes
- flow rate sample air : 0.3 L/min
- flow rate sheath air : 3.0 L/min
- port for sensors : yes
- ambient temperature : 10 to 40°C (50 to 104°F)
- ambient humidity : 0 to 95% RH, non-condensing
- absolute pressure range : 600 - 1100 mbar at full voltage range
- power supply : 85 - 264 VAC, 47 - 440 Hz
- power consumption : 80 - 130 W
- interfaces : USB or RS-232
- dimensions DMA (h x w x d) :
- M – DMA: 23.4 x 14 x 15.6 cm (9.2 x 5.5 x 6.1 in)
- L – DMA: 47.8 x 14 x 15.6 cm (18.8 x 5.5 x 6.1 in)
- Weight DMA :
- M – DMA: 5.7 kg (12.6 lbs)
- L – DMA: 7.9 kg (17.3 lbs)
- dimensions CPC (h x w x d) : 40 x 25 x 29 cm (15.7 x 9.8 x 11.4 in)
- weight CPC : 12.4 kg (27.3 lbs)
