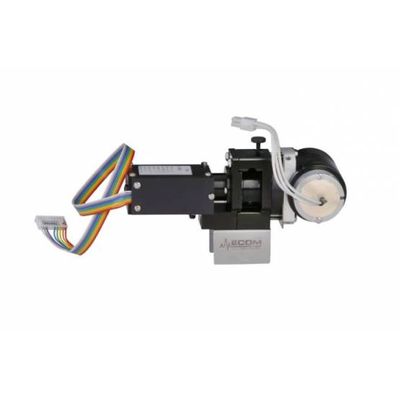

ECOM spol. s r.o. - Model TOY18DAD800 I -Scanning UV Detector
200 - 800 nm Scanning PDA detector measures at PDA detector measures at four wavelengths simultaneously or sends scan with speed up to 20 Hz which allows to create 3D picture.Most popular related searches
PREPARATIVE CELL PLCC 15 (SUPPLIED WITH UNIT)
- volume/optical path (adjustable) 40 μl / 0.3 mm; 55 μl / 1.3 mm; 70 μl / 2.4 mm
- Cell connecting tubing with OD = 1/8", thread 1/4"-28
Most important features of TOYDAD I detectors:
- small dimensions
- built-in lamp working hours counter
- easy replacement of flow cell
- measuring at more wavelengths simultaneously
- sophisticated diagnostic software
- Wavelength range: 200-800 nm
- Number of channels (Signals): 4
- Scan: 200 - 800 nm, 20 Hz, step 1 nm
- Number of CCD elements: 256
- Accuracy of adjustment: ± 1 nm
- Typical spectral half-width: 10 nm
- Reproducibility: ±0.5 nm
- Light source: Deuterium lamp
- Noise (Test cell, 254nm, TC 2s, 10 Hz): ± 5 x 10-5 AU
- Drift (Test cell, 254nm): 1 x 10-3 AU/hr
- Time constant: 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s
- Communication: RS232; optionally USB and LAN
- Power supply: 24 -36 V DC
- Power input: 48 W
- Dimensions (W x H x D): 220 x 120 x 110 mm (8.67 x 4.72 x 4.33 in)
- Weight: 1.250 kg (2.46 lb)
- Materials in contact with mobile phase: FEP; fused silica, stainless steel. PEEK
- Optical cables: no
