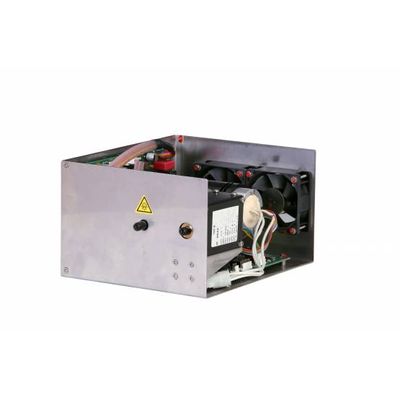

ECOM spol. s r.o. - Model TOY18DAD800 EX -Scanning UV Detector

Most important features of TOYDAD EX units:

• small dimensions
• built-in lamp working hours counter
• cell connection using optical cables
• measuring at more wavelengths simultaneously
• sophisticated diagnostic software

• Wavelength range: 200-800 nm
• Number of channels (Signals): 4
• Number of CCD elements: 256
• Accuracy of adjustment: ± 1 nm /±0.5 nm
• Typical spectral half-width: 10 nm
• Drift (Test cell, 254nm): 2 x 10^-3 AU/hr
• Time constant: 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s
• Power supply: 24 -36 V DC
• Power input: 48 W
• Dimensions (W x H x D): 164 x 112 x 197 mm (6.46 x 4.41 x 7.76 in)
• Weight: 2.0 kg (4.4 lb)
• Materials in contact with mobile phase: depends on the selected cell
• Optical cables: yes
