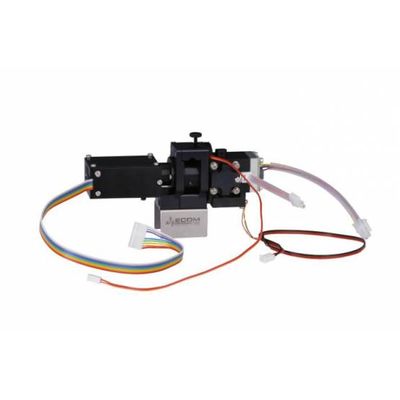

ECOM spol. s r.o. - Model BABY18DAD800 -Scanning UV Detector
200 - 800 nm Scanning PDA detector measures at four wavelengths simultaneously or sends scan with speed up to 20 Hz which allows to create 3D picture.Most popular related searches
AMY17 board allows to have optional extension modules (for additional cost):
- Analog outputs board
- LAN and USB board
- Display with keyboard
- Leakage sensor
PREPARATIVE CELL PLCC 15 (SUPPLIED WITH UNIT)
- volume/optical path (adjustable) 45 μl / 0.3 mm; 55 μl / 1.4 mm; 70 μl / 2.4 mm
- Cell connecting tubing with OD = 1/8", thread 1/4"-28
AMY17 board allows to have optional extension modules (for additional cost):
- Analog outputs board
- LAN and USB board
- Display with keyboard
- Leakage sensor
- Wavelength range: 200-800 nm
- Number of channels (Signals): 4
- Scan: 200 - 800 nm,up to 20 Hz, step 1 nm
- Number of CCD elements: 256
- Accuracy of adjustment: ± 1 nm
- Typical spectral half-width: 10 nm
- Reproducibility: ±0.5 nm
- Light source: Deuterium lamp
- Noise (Test cell, 254nm, TC 2s, 10 Hz): ± 5 x 10-6 AU
- Drift (Test cell, 254nm): 2 x 10-3 AU/hr
- Time constant: 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s
- Communication: RS232; optionally USB and LAN
- Power supply: 24 -36 V DC
- Power input: 20W
- Dimensions (W x H x D): 182 x 59 x 67 mm (7.17 x 2.32 x 2.64 in)
- Weight: 0.7 kg (1.54 lb)
- Materials in contact with mobile phase: FEP, fused silica, stainless steel, PEEK
- Optical cables: no
