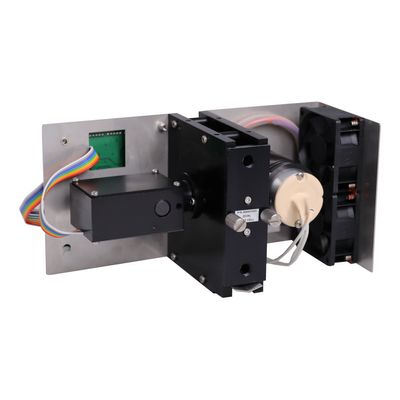

ECOM spol. s r.o. - Model TOY20DAD800 L -Scanning UV Detector

More wavelengths or scan are used in liquid chromatography to verify purity of analyzed samples or in situations when some peaks absorb on different wavelengths.

The unit is supplied with AMY17 PCB board of dimensions 100 x 160 mm (3.94 x 6.30 in) . It powers the lamps and control the unit.

PREPARATIVE CELL PLCC 15 L (SUPPLIED WITH UNIT)

volume/optical path (adjustable)                                       45 μl / 0.3 mm; 55 μl / 1.4 mm; 70 μl / 2.4 mm
Cell connecting                                                                tubing with OD = 1/8", thread 1/4"-28

• small dimensions
• built-in lamp working hours counter
• easy replacement of flow cell
• measuring at more wavelengths simultaneously
• sophisticated diagnostic software

Wavelength range: 190-800 nm
Number of channels (Signals): 4
Scan: 190 - 800 nm, up to 20 Hz, step 1 nm
Number of CCD elements: 256
Accuracy of adjustment: ± 1 nm
Typical spectral half-width: 10 nm
Reproducibility: ±0.5 nm
Light source: Deuterium and halogen lamp
Noise (Test cell, 254nm, TC 2s, 10 Hz): ± 5 x 10^-5 AU
Drift (Test cell, 254nm): 1 x 10^-3 AU/h
Time constant: 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s
Communication: RS232; optionally USB and LAN
Power supply: 24 -36 V DC
Power input: 48 W
Dimensions (W x H x D): 220 x 120 x 110 mm (8.67 x 4.72 x 4.33 in)
Weight: 1.90 kg (4.19 lb)
Materials in contact with mobile phase: FEP, fused silica, stainless steel, PEEK
Optical cables: no
