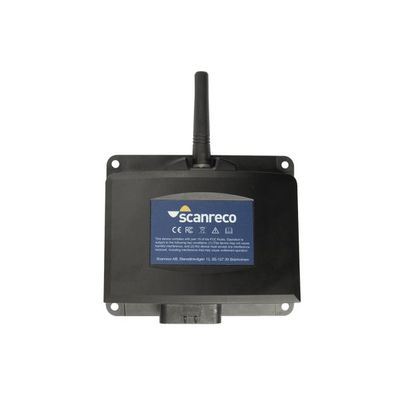

Scanreco - Model G6-CAN -Receiver
FromScanreco AB
The G6 CAN Receiver pairs perfectly with any G6 transmitter and literally puts the machine performance into the hands of the operator.
Most popular related searches
- Single and Multi Band
- Automatic Frequency Hopping
- CAN open and Safety CAN
- Status LED
- Withstands vibrations
- Protected against dirt and water
- Uniquely paired with its system’s transmitter(s)
- IP67
- SIL3
- PLe
- SISP™
- Dimensions: (W x D x H) 138 x 49 x 118 mm | 4 x 1.9 x 4.6 inches
- Weight 560 g | 2 lb
- Protection category: IP67
- Operating temperature (Celsius/Fahrenheit): -25 °C to +70 °C / -13 °F to +158 °F
- Storage temperature (Celsius/Fahrenheit): -40°C to +85 °C / -40°F to +185 °F
- Safety classified hardware output:
- LOOP = SIL 3 & PL e
- STOP_OUT = SIL 3 & PL e
- ACT_MOV = SIL 3 & PL e
- CAN bus: CAN open and Safety CAN
- Overload Protection: Yes (for the safety classified outputs)
- Antenna: External
- Radio frequency bands:
- 868 MHz
- 915 MHz
- 2.4 GHz
- Frequency management: Automatic frequency hopping
- Range (typical): > 100 m
- Power supply to receiver: 12 / 24 VDC
- Fuse: Use external fuse 10 A
- Current consumption: < 200 mA (excluding external loads and in radio mode)
- Connector type: AMPSEAL 14-pin
- BLE: Available for configuration via Scanreco Modulate software
- Cable control: Optional, requires external connector
